BENY 1MWh Industrial Air-Cooling Energy Storage...

Beny New Energy GmbH
价 格:
起价 ¥9,120 / kWh *
起价 ¥1,020,000 / 台 *
储能系统技术: LFP(磷酸锂铁)
标称容量: 280 Ah
地区: 德国 德国
联系生产商
注意: 您的询盘将直接发送至Beny New Energy GmbH

描述:

  • This system is suited for C&l settings that demand robust grid continuity.

  • This system is versatile, catering to diverse requirements such as grid frequency modulation energy storage, and wind and solar microgrid energy storage.

  • The modular design ensures scalability, allowing businesses to expand their energy storage capacity.

产品特点

产品型号

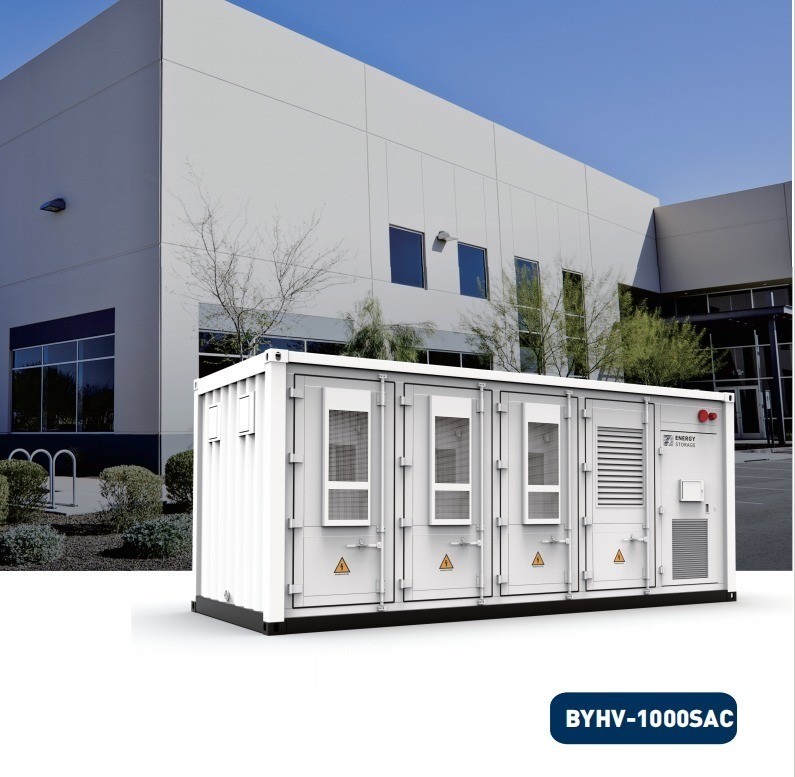

BYHV‑1000SAC BYHV‑1000SAC‑1H
产品规格
价格( kWh)
¥9,120 / kWh * ¥11,200 / kWh *
价格( 台)
¥1,020,000 / 台 * ¥1,250,000 / 台 *
配置 集装箱式
储能系统技术 LFP(磷酸锂铁)
部件 电池管理系统
安装方式 地板
蓄电池产品参数表
电性能参数
标称电压
400 V 400 V
工作电压范围 624 - 876 V
标称容量
280Ah@20hr 280Ah@20hr
标称能量
1000 kWh 1000 kWh
标称放电电流
655 A 1310 A
最大放电电流
794 A 1588 A
温度参数
工作温度范围 -30 ~ +55 ℃
一般参数
尺寸(长*宽*高)
6058x2591x2438 mm 6058x2591x2438 mm
重量
16000 Kg 16200 Kg
IP 等级 IP55
最高运行海拔 3000 m
通信 CAN, RS485
PDF
下载公司产品详情

Efficient And Safe C&l Energy Storage

Highlights:

  1. We focus on energy storage and supply highly compatible energy storage systems.

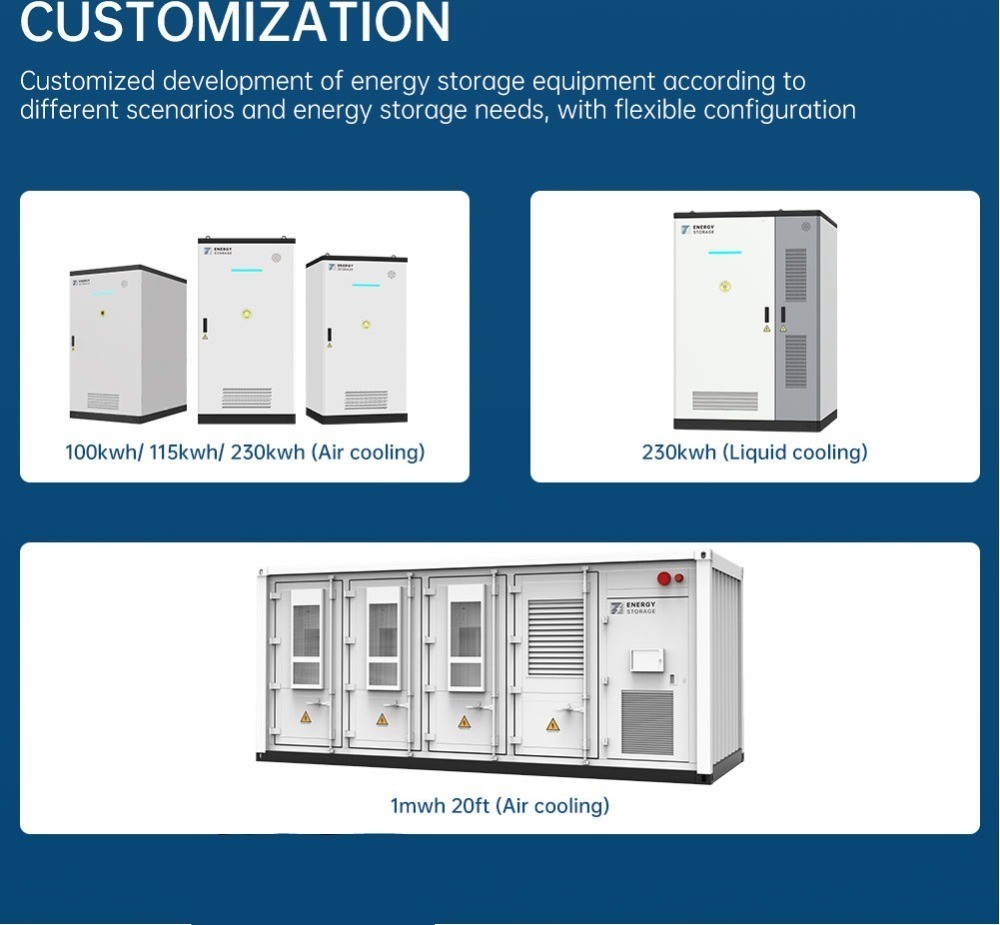

  2. Offer 5 years warranty. Have 100KWH/ 115KWH/ 230KWH/ 1MWH for your option

  3. Gotion High-tech Top-ranked A-class automotive batteries (Gotion is a subsidiary of VW and its battery is used in VW cars)/Support customization if you need other battery

  4. The cooling method can be air or liquid

  5. Core components using top-grade brands like the ABB

  6. IP 55 protection level

  7. Provide more complete global technical support services. Have offices in Europe, South America, Brazil, and Southeast Asia.

Product Advantage

High performance

The annual stable operation efficiency is 90%

Long Life

Core component life >15 years 8000 cycle life

High Safety

IEC 62619、IEC 63056、IEC 62477 IEC 61000、IEC60730

Intelligent Monitor

24/7 operation and maintenance, remote operation and maintenance, and unattended automatically adjust the control strategy according to the load

Easy Expansion

A single cabinet covers an area of <15square meters, has flexible placement, quick to complete the adjustment operation

Intelligent monitoring

PowerView

Client software that allows for real-time viewing of the operating status and parameters, economic benefits, product information, and historical data of the energy storage system.

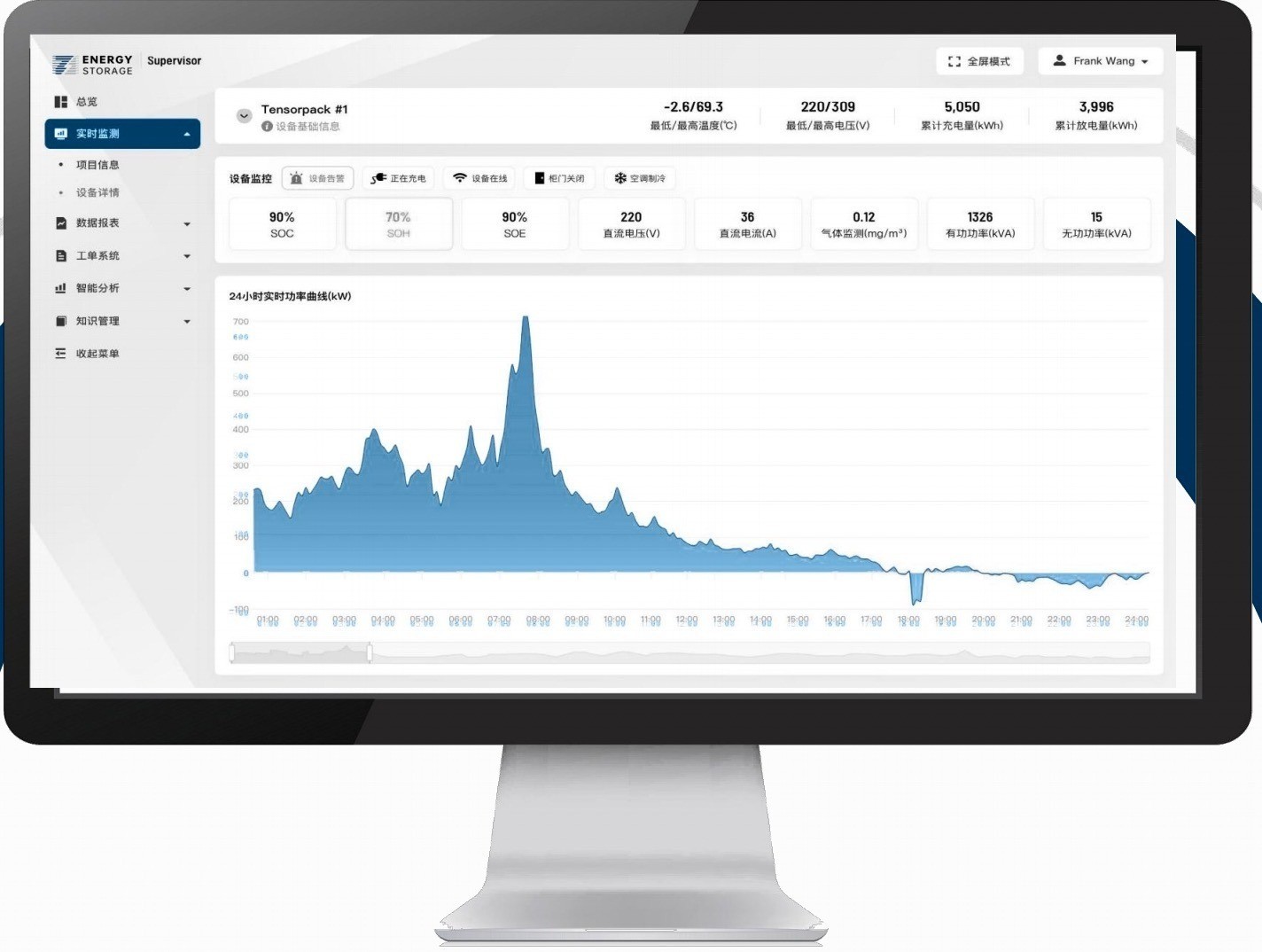

Supervisor

Intelligent operation and maintenance software that monitors the operation status of energy storage systems manages operation and maintenance business, predicts maintenance needs 24/7, and provides worry-free system security.

Analyzer

AI data analysis software that uses a large amount of operational data, combined with battery electrochemical models and load operating conditions, to adjust the optimal operating strategy in real-time.

Bidder

Virtual power plant software that aggregates resources such as energy storage, charging stations, photovoltaics, and controllable loads, participates in power market trading and improves asset investment return.

Why choose BENY?

Rigorous testing

Starting from raw material screening and design, product design is guided by multiple safety standards at home and abroad. After strict failure mode and consequence analysis, 3710 quality control points are monitored in real-time from components to systems to ensure the safety and reliability of delivered products.

All first-line suppliers

All energy storage components use first-line suppliers, such as Gotion, ABB other strict supplier selections, with the highest quality to provide customers with the strongest hardware security guarantee.

Multi-level

Security Control Multi-layer safety management is superimposed in the system, from BMS to PCS safety control to AC and DC multi-level electrical protection, combined with a co-management system and fire protection system to ensure product safety, and passed the strict IEC62619, IEC 63056, IEC60730-1 safety certification.

Battery Safety

Warning Through the battery aging mechanism and safety warning algorithm, deeply excavate the evolution mechanism of the internal characteristics of the battery, and construct the multi-dimensional coupling relationship between the internal and external characteristics of the battery in the post-deterioration stage, thereby inferring the attenuation curve of the battery SOC and SOH, and judging the risk of internal short circuit in real-time.

Functionality

Time of Use

Reduce costs with the difference between peak and off-peak tariffs.

Renewable

Use more energy from renewable sources and minimize feed-in.

Peak Shaving

Control the maximum load power and reduce the demand charges.

Microgrid

Build a small utility grid with and without connection to the public utility grid.

Capacity Expansion

Increase electrical generation capacity without changing the transformer.

Market Participation

Provide energy support to the grid in response to system operator alerts.

Application

Factory

Factory normally suffers high electrical bills. TensorPack with multi-use capabilities that can run several storage applications in a parallel time of use, peak shaving, renewable self-consumption, and microgrid, where high storage capacity with many guaranteed cycles for sustainable power delivery.

Charging Station

The grid power connection easily reaches its limits when constructing large EV chargers. Deploying TensorPack can avoid transformer expansion costs since TensorPack regulates the load peaks to protest against over-load and reduce electric bills.

Microgrid

Distributed energy storage combined with photovoltaic, diesel generators, and other sources to provide a stable power system in remote areas or areas with unstable power grids.

Beny New Energy GmbH

+49 98 423316
https://www.pvb.com
德国
Rudower Chaussee 52, 12489, Berlin
员工数: 1,261
注意: 您的询盘将直接发送至Beny New Energy GmbH

有用联系人

公司描述

奔一新能源有限公司,建立于2011年,是全球太阳能供应链中光伏电气产品的领航者,以30年电力电子技术的深厚积淀为基石,研发太阳能光伏保护产品和电动汽车充电器产品,引领行业向高效、安全及用户友好型技术迈进。

质量缔造品牌之名,是企业立身之本。我们制订并执行严格的质量管理体系,所有产品严格遵循UL、SAA、CB、CE、TUV、ISO及RoHS等国际标准,为全球客户提供无与伦比的信赖保障。

经过十多年的全球业务发展,BENY的产品现已遍布全球,遍布澳大利亚、德国、法国、波兰、英国、美国、巴西、南非、菲律宾、泰国、中东等国家。奔一的总部位于中国,并在德国、美国和巴西设立了海外分公司,以更好地服务于我们的客户。

奔一始终坚持专业化的发展方向,打造全球信赖的太阳能产品供应商。为人类新能源事业的发展尽上我们的绵薄之力。

产品视频

公司动态

2024年11月28日

品牌荣誉|奔一新能源斩获国际“顶级光伏品牌”大奖https://www.beny.com/new/beny-wins-two-top-brand-pv-2024-awards-for-inverters

2024年11月12日

我们即将参加2024年11月13日至15日在土耳其伊斯坦布尔举办的ev charge Show,展位号HALL 3-G4b,ISTANBUL EXPO CENTER。欢迎莅临伊斯坦布尔世博中心,与我们深入交流!

2024年8月27日

奔一新能源与您相约2024巴西展会|8月27日-29日,南美国际太阳能展将在巴西圣保罗——北世博中心举行,奔一将亮相G5.119展位。

产品

Commercial DC Fast Charging Solutions

BENY provides both stand-column and wall-mounted DC charging stations for vehicles with a power ranging from 20kW to 600kW, equipped with one to three guns to meet various applications.

All BENY DC rapid chargers are equipped with intelligent charging technology and are validated for stability and reliability to meet large-scale charging demands. With smart recognition capabilities, our DC car charger can automatically identify various vehicle models and adjust to their specific power needs.

Residential AC EV Charging Solutions

BENY offers a variety of EV AC chargers designed for residential applications. Our AC EV charger product line includes portable, as well as wall-mounted chargers with power ratings of 3.7kW to 22kW and with either one or two charging connectors.

Every AC charger for EVs comprises top-notch intelligent charging technology for both stability and reliability. These chargers also come with the DLB (Dynamic Load Balancing) feature that distributes load to connected devices.

Commercial & Industrial Energy Storage System

BENY solar energy storage system is an advanced energy storage technology that can be widely applied in residential, commercial, and industry, as well container type. These systems store electricity in batteries, enabling flexible scheduling and efficient energy management for various purposes.

BENY container
energy
storage
system, covering
BESS
from
1MWh~5MWh.
It adopts an "All-In-One" design concept, with ultra-high integration that combines energy storage batteries, BMS (Battery Managemen System), PCS (Power Conversion System), EMS(energy management system),fire protection, air conditioning, and more into a single unit, making it adaptable to various scenerios

Home Energy Storage System

Whether you need a compact wall-mounted unit, a modular stackable system, or a high-capacity rack-mounted solution, BENY’s comprehensive range of home energy storage systems is designed to meet diverse energy needs with high performance and reliability. Our low-voltage residential storage covers a range of 2.66kWh to 5.12kWh*15, while our high-voltage residential storage covers 3.99kWh to 7.83kWh*10. Complementing these options, our all-in-one solar power system includes optimized solar battery packs designed to meet household solar energy storage needs with seamless energy management.

Multi-scenario Smart PV-ESS-EV Solutions

BENY is committed to providing multi-scenario smart charging solutions, creating integrated zero-carbon charging stations that combine PV, ESS, EV chargers, and discharging management in one place.

Our low-cost, high-quality smart charging technology, empowers clients across various industries to excel in their adoption of new energy applications, offering them superior energy solutions.

Reliable Solar Microinverters

Microinverters with power range from 500W to 2800W, suitable for balconies and rooftops, optimize solar module output through module-level control, making them ideal for limited spaces and small-scale systems.Microinverters with individual module-level MPPT can prevent the impact of a single solar panel malfunction on the entire system and provide real-time monitoring for timely issue detection and resolution.

Solar Panels

Make the most of every ray of sunlight and experience the full potential of solar energy. Increase your solar power generation with our solar modules. These modules have an efficiency of up to 22%, and the double-sided design utilizes the sunlight reflected from the back, offering a power increase of up to 30% on the same surface area. This maximizes power generation, making them ideal for residential and commercial installations.

Easy Solar Kit Solutions

Beny provides a plug-and-play balcony PV power generation solution, mainly using the Beny Easy Solar Kit. Easy Solar Kit, which integrates PV modules, microinverters, module brackets, and cables, is designed for a variety of scenarios and can be installed on a flat garden, flat roof, and even balcony and wall.

About BENY

Empowering Solar Brilliance

With the independent R&D capability, BENY keeps revolutionizing the technology that empowers solar energy like never before, harnessing the potential of every ray of sunshine. It is committed to making solar energy accessible, efficient, and hassle-free in every corner worldwide. Let’s explore and harness the full possibility of the sun and light up a greener world together.

Mission and Vision

Driven by a mission of delivering cutting-edge Solar + BESS solutions and EV Charging solutions to users, BENY’s team works diligently to achieve innovation and excellence. BENY’s vision is to become a global leader in intelligent new energy solutions.

Diverse and Dedicated Team

BENY takes immense pride in the diverse and dedicated team that drives the company’s success. The R&D team serves as the heartbeat of innovation, consistently pushing the boundaries of technology to bring forth groundbreaking solutions. The marketing team ensures that products and services reach the right audience, fostering strong connections and partnerships. Furthermore, the production team works diligently to ensure product quality and precision. Alongside all team members, BENY creates a dynamic ensemble, dedicated to the mission and vision.

Commitment to Quality

At the core of BENY’s values lies an unwavering commitment to quality. Power components are from global leaders like Infineon, TI, and Onsemi (NXP automotive-grade control chips). All products have undergone rigorous test processes like high and low-temperature testing, salt mist testing, and waterproof testing. BENY leaves no stone unturned in ensuring that products and services meet the highest standards of excellence.

Stay Informed About Market Insights

In today’s dynamic and ever-evolving business landscape, staying informed about market insights is paramount. At BENY, we always keep a vigilant eye on the market trends to make proactive adjustments, seize opportunities, and mitigate risks, thus providing optimal solutions and services for worldwide customers.

Global Business Layout

After over a decade of global business development and expansion, BENY’s products now have a global presence, spanning countries such as Australia, Germany, France, Poland, the United Kingdom, the United States, Brazil, South Africa, the Philippines, and Thailand, Middle Eastern countries. BENY’s headquarters is located in China, integrating research and development, manufacturing, and sales, equipped with robust supply capabilities. Furthermore, BENY has established local offices in Germany, the United States, and Brazil. As part of our ongoing global expansion, BENY is committed to further business development, including establishing additional local offices and production facilities, to better serve our local customers.

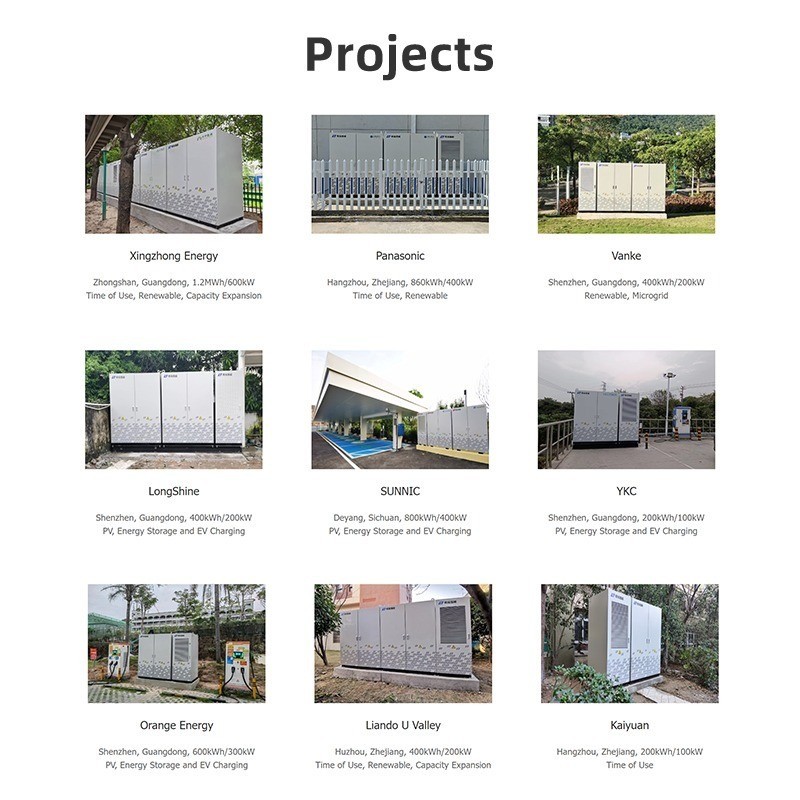

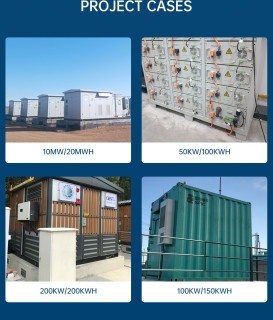

Project cases
