天合光能股份有限公司 Vertex N TSM-NEG21C.20 695-720W

深圳拓普能源有限公司
价 格:
起价 ¥0.627 / Wp *
价格 / 台
最低订购量 726+
交货时间 5
700 ¥439
705 ¥442
710 ¥445
715 ¥448
720 ¥451
电 池 技 术: 双面, TOPCon, N型
功率范围: 700 ~ 720 Wp
地区: 中国大陆 中国大陆
联系销售商
注意: 您的询盘将直接发送至深圳拓普能源有限公司

描述:

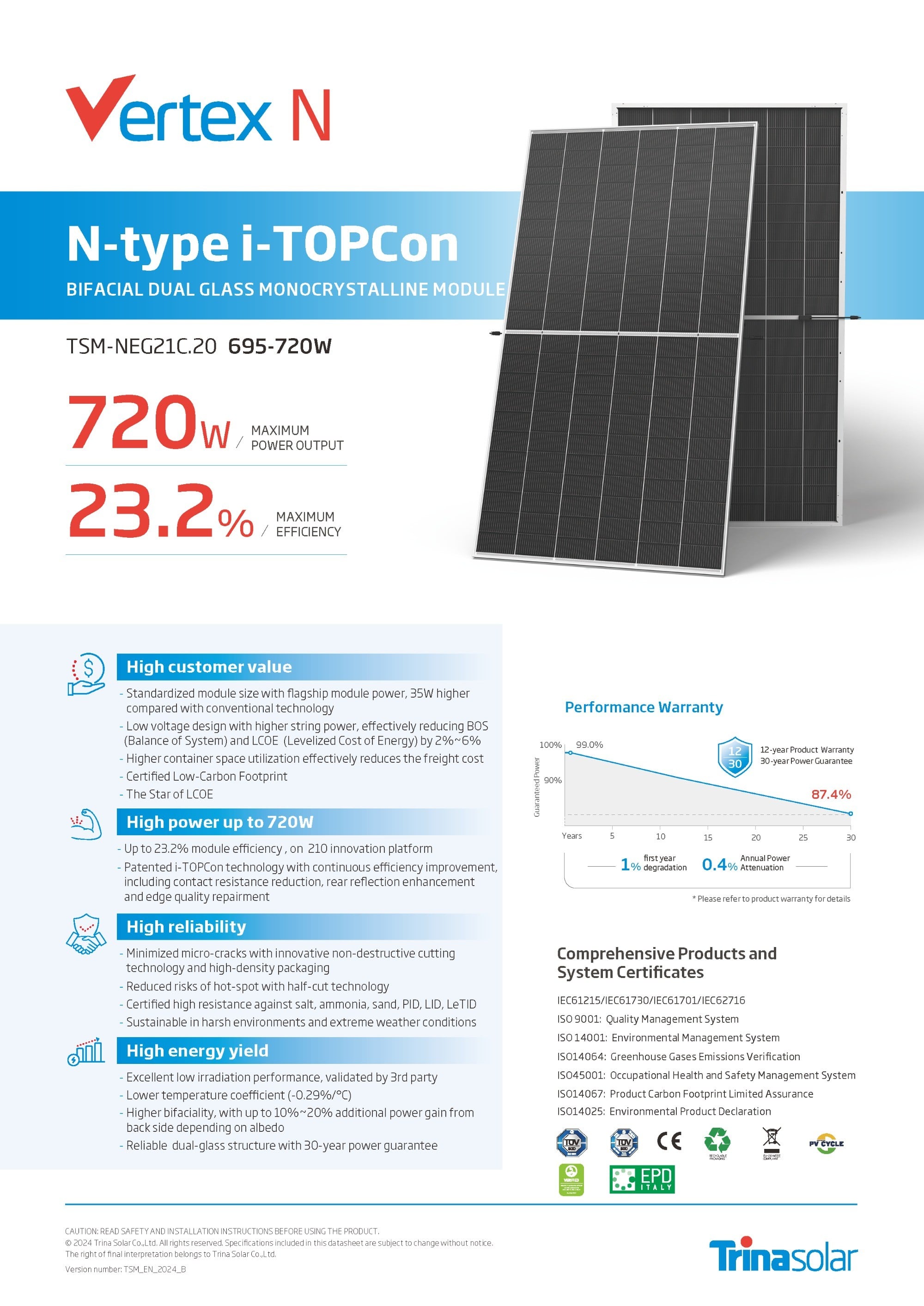

  • Standardized module size with flagship module power, 35W higher compared with conventional technology

  • Minimized micro-cracks with innovative non-destructive cutting technology and high-density packaging

  • Sustainable in harsh environments and extreme weather conditions

产品特点

类型 单晶硅
产品型号
700 705 710 715 720
质量保证
产品质量保证 12 年
功率输出保证 30年期87.4%输出功率保证

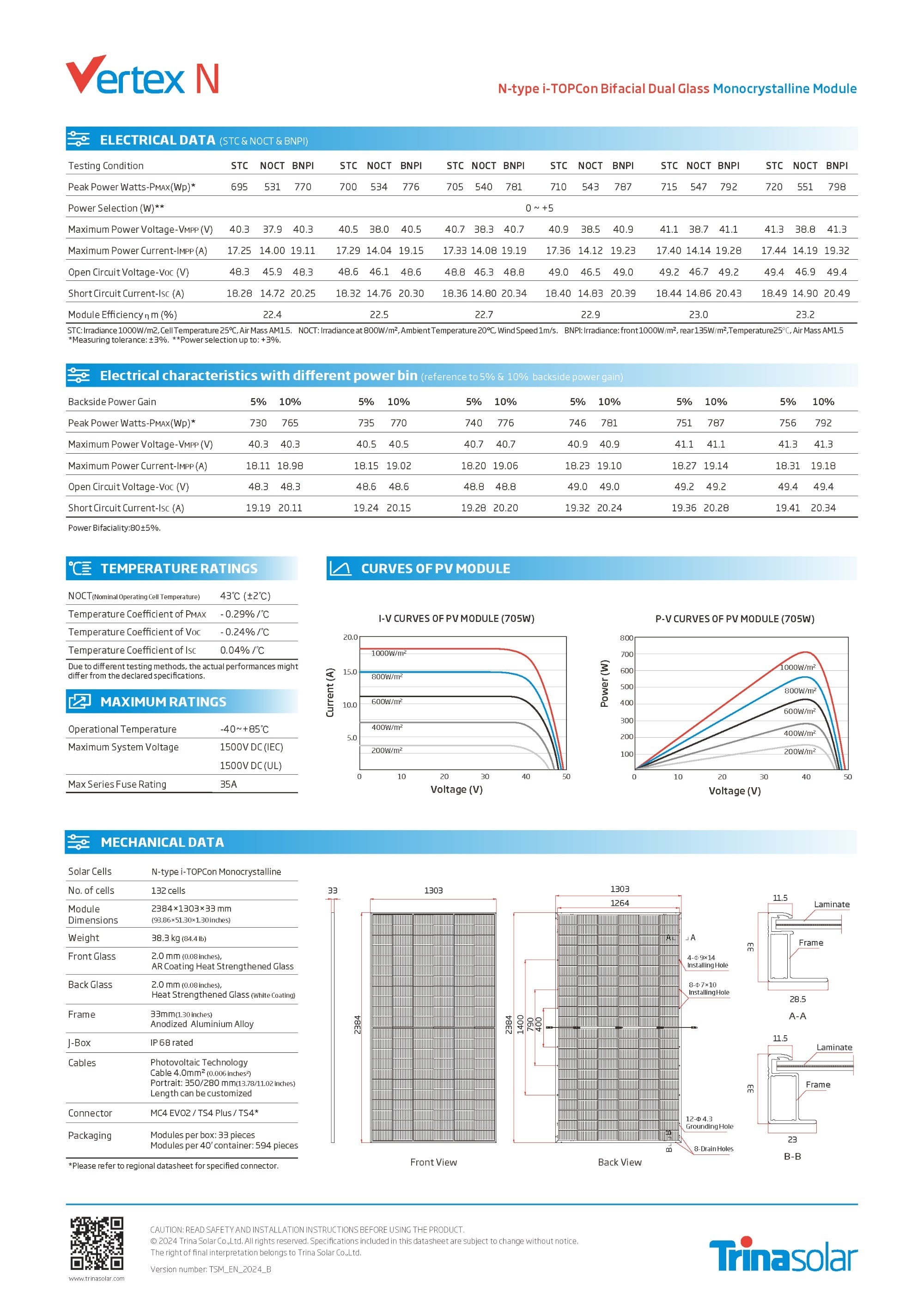

电性能参数(STC)
峰值功率 (Pmax)
700 Wp 705 Wp 710 Wp 715 Wp 720 Wp
峰值工作电压(Vmpp)
40.5 V 40.7 V 40.9 V 41.1 V 41.3 V
峰值工作电流(Impp)
17.29 A 17.33 A 17.36 A 17.4 A 17.44 A
开路电压(Voc)
48.6 V 48.8 V 49 V 49.2 V 49.4 V
短路电流(Isc)
18.32 A 18.36 A 18.4 A 18.44 A 18.49 A
组件效率
22.5 % 22.7 % 22.9 % 23 % 23.2 %
功率偏差(正)
+ 0.5 % + 0.5 % + 0.5 % + 0.5 % + 0.5 %
  标准测试条件(STC):太阳能辐射通量1000W/m2,大气参数1.5,组件温度25℃。
电性能参数(NOCT)
峰值功率 (Pmax)
534 Wp 540 Wp 543 Wp 547 Wp 551 Wp
峰值工作电压(Vmpp)
38 V 38.3 V 38.5 V 38.7 V 38.8 V
峰值工作电流(Impp)
14.04 A 14.08 A 14.12 A 14.14 A 14.19 A
开路电压(Voc)
46.1 V 46.3 V 46.5 V 46.7 V 46.9 V
短路电流(Isc)
14.76 A 14.8 A 14.83 A 14.86 A 14.9 A
最大耐久温度 43±2 °C
  电池片标称工作温度(NOCT):太阳能辐射通量800W/m2,大气参数1.5,环境温度20℃,风速1 m/s。
温度特性
工作温度 -40~85 °C
温度系数(Pmax) -0.29 %/°C
温度系数(Voc) -0.24 %/°C
温度系数(Isc) 0.04 %/°C
系统集成参数
最大系统电压 1500 V
保险丝额定电流 35 A
物理参数
组件尺寸(高/宽/厚) 2384x1303x33 mm
重量 38.3 kg
电池片数量 132
玻璃类型 防反射镀膜
玻璃厚度 2 mm
边框类型 阳极氧化铝
接线盒防护等级 IP 68
连接器类型 MC4
电缆截面 4 mm2
PDF
下载公司产品详情

深圳拓普能源有限公司

+86 134 80659649
www.topsky-tech.com
中国大陆
广东省深圳市宝安区前进一路86号深信泰丰大厦601室
员工数: 50
母公司: Topsky Energy Co., Ltd
注意: 您的询盘将直接发送至深圳拓普能源有限公司
公司描述

Topsky Energy is a high-tech, environmentally friendly, and modernized PV enterprise established in 1998.

Involved in researching, producing, and popularizing solar cells, modules, and application products, Topsky offers safe, reliable, and efficient solar system installation and integrated solutions worldwide. With 3 sole-funded companies in Shenzhen and 2 manufacturing factories in Jiangsu and Ningbo, Topsky distributes its solar products globally. Operating manufacturing facilities in Zhejiang and Jiangsu provinces and conducting global sales and marketing in Shenzhen and Hong Kong, China, Topsky can supply customers with 200MW OEM solar cells, 800MW solar modules, and 60,000 sets of solar application products annually.

Topsky’s solar modules find wide application in businesses, residences, industrial grid-tied, and off-grid solar power systems. Additionally, Topsky has established long-term partnerships with top solar brands such as JA, Longi, Trina, Jinko, Risen, Growatt, and Huawei.
