GSD7S72T-565-595WT Bifacial Dual Glass 16BB Hal...

G-STAR Pte. Ltd.

电池技术：	双面, TOPCon
功率范围：	565 ~ 595 Wp
地区：	新加坡

联系生产商

注意： 您的询盘将直接发送至G-STAR Pte. Ltd.。

描述：

产品信息
公司档案页

产品特点

类型

单晶硅

产品型号

GSD7S72T-565WT

GSD7S72T-57-WT

GSD7S72T-575WT

GSD7S72T-580WT

GSD7S72T-585WT

GSD7S72T-590WT

GSD7S72T-595WT

质量保证

产品质量保证

25 年

功率输出保证

1年期99%输出功率保证，30年期87.4%输出功率保证

电性能参数（STC）

峰值功率（Pmax）

565 Wp

570 Wp

575 Wp

580 Wp

585 Wp

590 Wp

595 Wp

峰值工作电压（Vmpp）

41.92 V

42.07 V

42.22 V

42.37 V

42.52 V

42.67 V

42.82 V

峰值工作电流（Impp）

13.48 A

13.55 A

13.62 A

13.69 A

13.76 A

13.83 A

13.9 A

开路电压（Voc）

50.6 V

50.74 V

50.88 V

51.02 V

51.16 V

51.3 V

51.44 V

短路电流（Isc）

14.23 A

14.31 A

14.39 A

14.47 A

14.55 A

14.63 A

14.71 A

组件效率

21.87 %

22.07 %

22.26 %

22.45 %

22.65 %

22.84 %

23.03 %

功率偏差（正）

+ 3 %

标准测试条件（STC）：太阳能辐射通量1000W/m²，大气参数1.5，组件温度25℃。

电性能参数（NOCT）

最大耐久温度

43±2 °C

电池片标称工作温度（NOCT）：太阳能辐射通量800W/m²，大气参数1.5，环境温度20℃，风速1 m/s。

温度特性

工作温度

-40~85 °C

温度系数（Pmax）

-0.3 %/°C

温度系数（Voc）

-0.25 %/°C

温度系数（Isc）

0.046 %/°C

系统集成参数

最大系统电压

1500 V

保险丝额定电流

30 A

物理参数

组件尺寸（高/宽/厚）

2278x1134x30 mm

重量

32 kg

电池片规格

182×91 mm

电池片数量

144

玻璃类型

防反射镀膜

玻璃厚度

2 mm

边框类型

阳极氧化铝，Black

旁路二极管数

接线盒防护等级

IP 68

连接器类型

MC4

电缆长度

300 mm

PDF

下载公司产品详情

GSD7S72T Series - 565-595WT Bifacial Dual Glass 16BB Half-cut Mono Topcon Solar Module

About Us

G-STAR Pte. Ltd. is a cutting-edge high-tech enterprise that operates across the entire value chain of the solar panel industry, from producing silicon ingots and wafers to manufacturing solar cells, frames, and modules. Our expertise spans research, production, sales, and engineering technical services. Since our inception, we have adhered to a steadfast commitment to pursuing excellent quality, building a reliable brand in the photovoltaic (PV) industry. Our products undergo rigorous inspections by authoritative bodies and have garnered international recognition from entities such as ETL, TUV, and the California CEC.

At the forefront of the industry, G-STAR has implemented state-of-the-art, fully automatic component production lines and equipment. Our production technology and equipment conditions set industry standards. Our product module range encompasses varieties from 360W to 740W, including PERC, TOPCon, HJT, monofacial, bifacial, and full-black options. Widely applicable, our solar modules find use in diverse settings such as household roofs, commercial roofs, large ground power stations, and government projects. G-STAR is progressively gaining increased brand awareness in the solar photovoltaic industry.

G-STAR attaches importance to the talent development strategy, always adheres to the market orientation, and provides customers with a comprehensive service system integrating planning, design and technical guidance for undertaking large-scale power stations. With strict management measures, reliable product quality, excellent service system and low-cost control means. It has won the praise and trust of customers at home and abroad in the PV industry.

In order to jointly open up the PV market with unlimited business opportunities in the future, G-STAR will become your first choice with the best quality, the most favorable price and the best after-sales service. G-STAR always adheres to the values of "integrity, responsibility and win-win", and sincerely expects new and old customers at home and abroad to come to our company for field investigation, visit, guidance and cooperation.

Our Factory

Our Products

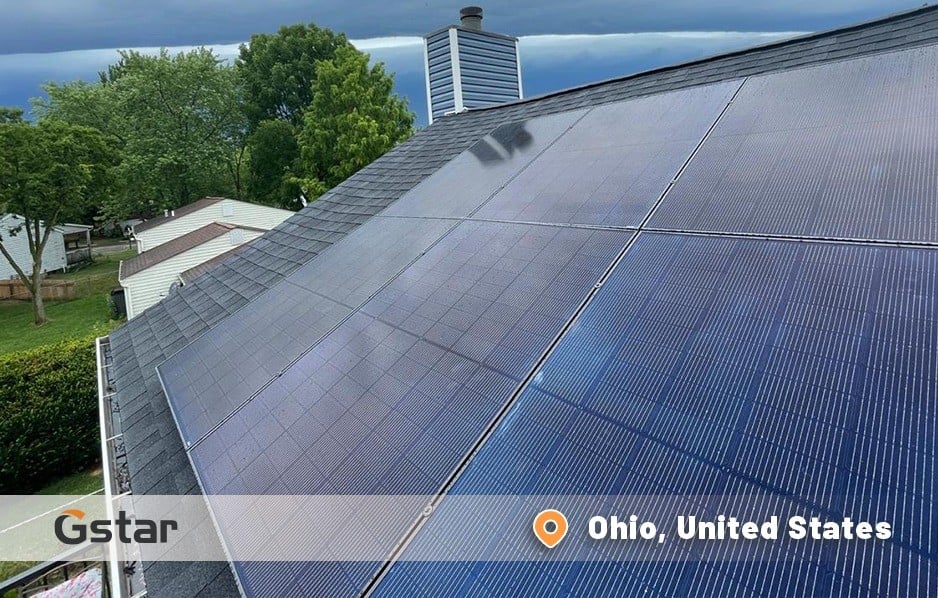

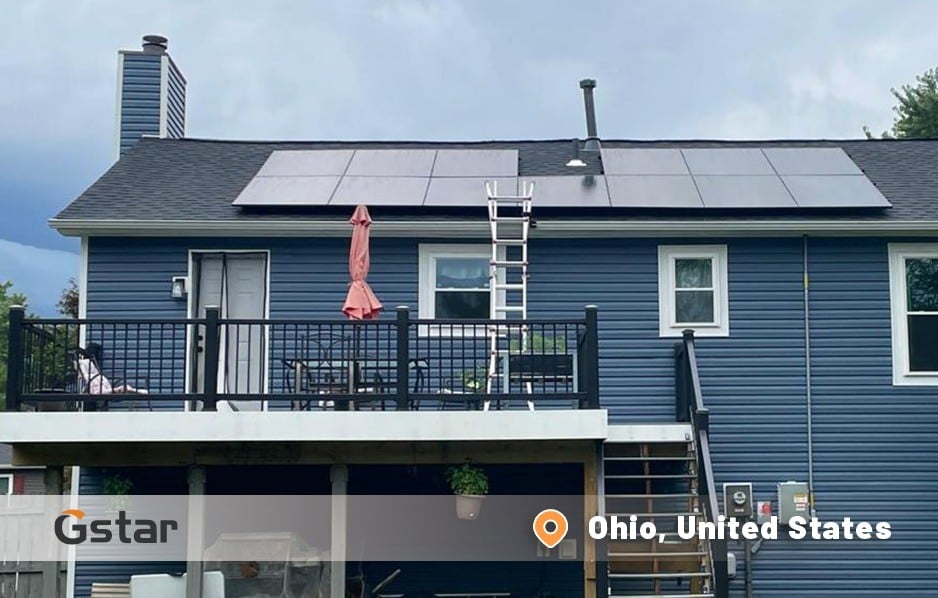

Projects
