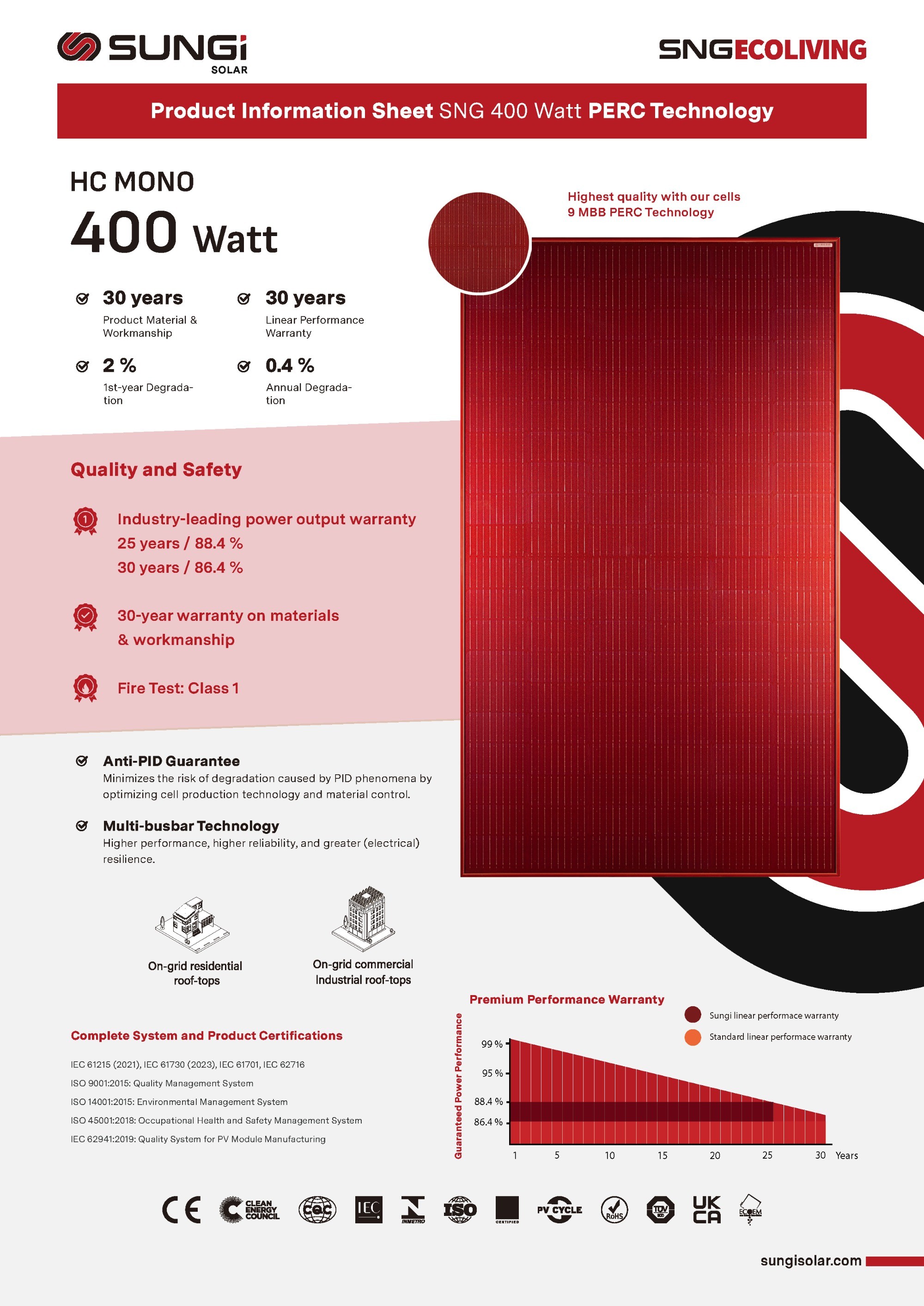

SNG Colored HC Mono 400W Total Red

Sungi Solar China Factory Co., Ltd.

价格 / 台
最低订购量	36-99 片	100-999 片	1000+ 片
SNG400	¥315	¥312	¥309

电池技术：	背钝化 (PERC)
功率范围：	400 Wp
地区：	中国大陆

联系生产商

注意： 您的询盘将直接发送至Sungi Solar China Factory Co., Ltd.。

描述：

产品信息
公司档案页

产品特点

类型

单晶硅

产品型号

SNG400

质量保证

产品质量保证

30 年

功率输出保证

25年期88.4%输出功率保证，30年期86.4%输出功率保证

电性能参数（STC）

峰值功率（Pmax）

400 Wp

峰值工作电压（Vmpp）

34.7 V

峰值工作电流（Impp）

11.53 A

开路电压（Voc）

42.2 V

短路电流（Isc）

12.13 A

组件效率

21.95 %

功率偏差（正）

+ 3 %

功率偏差（负）

- 3 %

标准测试条件（STC）：太阳能辐射通量1000W/m²，大气参数1.5，组件温度25℃。

电性能参数（NOCT）

峰值工作电压（Vmpp）

32.48 V

峰值工作电流（Impp）

9.71 A

开路电压（Voc）

39.6 V

短路电流（Isc）

10.15 A

最大耐久温度

45±2 °C

电池片标称工作温度（NOCT）：太阳能辐射通量800W/m²，大气参数1.5，环境温度20℃，风速1 m/s。

温度特性

工作温度

-40~85 °C

温度系数（Pmax）

-0.35 %/°C

温度系数（Voc）

-0.28 %/°C

温度系数（Isc）

0.048 %/°C

系统集成参数

最大系统电压

1500 V

保险丝额定电流

20 A

物理参数

组件尺寸（高/宽/厚）

1755x1038x30 mm

重量

19.5 kg

电池片规格

166×83 mm

电池片数量

120

玻璃类型

防反射镀膜

玻璃厚度

3.2 mm

边框类型

阳极氧化铝

接线盒防护等级

IP 68

连接器类型

MC4

电缆截面

4 mm²

电缆长度

1200 mm

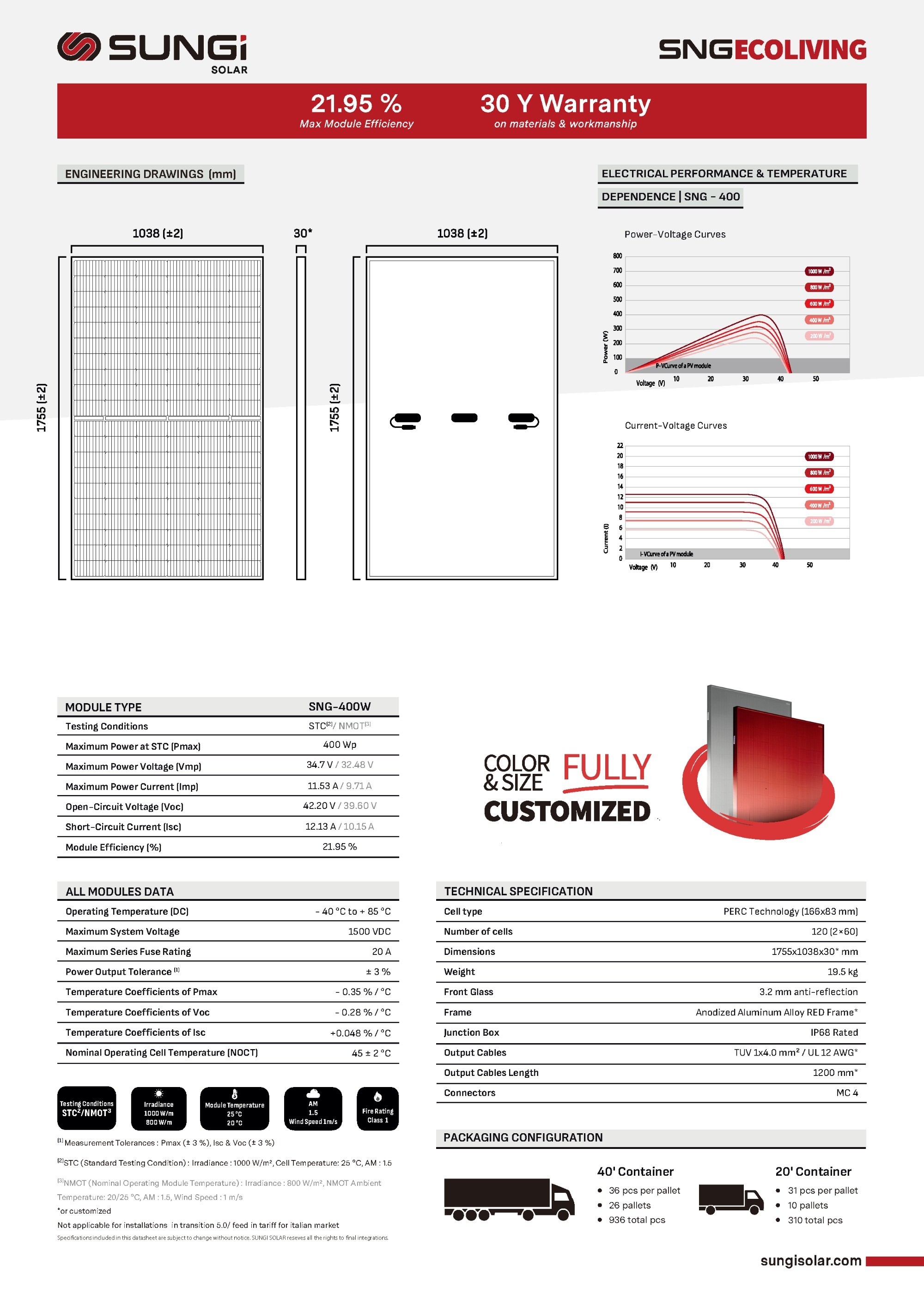

PDF

下载公司产品详情

New Generationof photovoltaics

Sungi Solar’s technologies represent the forefront of solar innovation, driving the industry toward higher efficiencies and greater reliability. With advanced designs and cutting-edge materials, we deliver solutions that redefine what’s possible in renewable energy.

Our commitment to excellence ensures that every panel is built to perform, last, and adapt to the challenges of a rapidly evolving world. Choose Sungi Solar to harness the power of innovation and lead the transition to a sustainable future.

Quality and Innovative Production

We are a pioneering company specializing in integrated photovoltaic products.

Since 2006, we have established ourselves as a leading solar cell manufacturer, continuously improving efficiency and performance through cutting-edge technologies.

Our production network spans across the United States, Japan, Europe, and Southeast Asia, supported by ongoing investments in advanced equipment and modern management systems. A professional production team, a dedicated R&D unit, and a highly skilled sales force collaborate to uphold Sungi Solar’s strict quality standards. From real-time monitoring to rigorous product testing, every process is meticulously controlled to guarantee the highest level of excellence and efficiency.

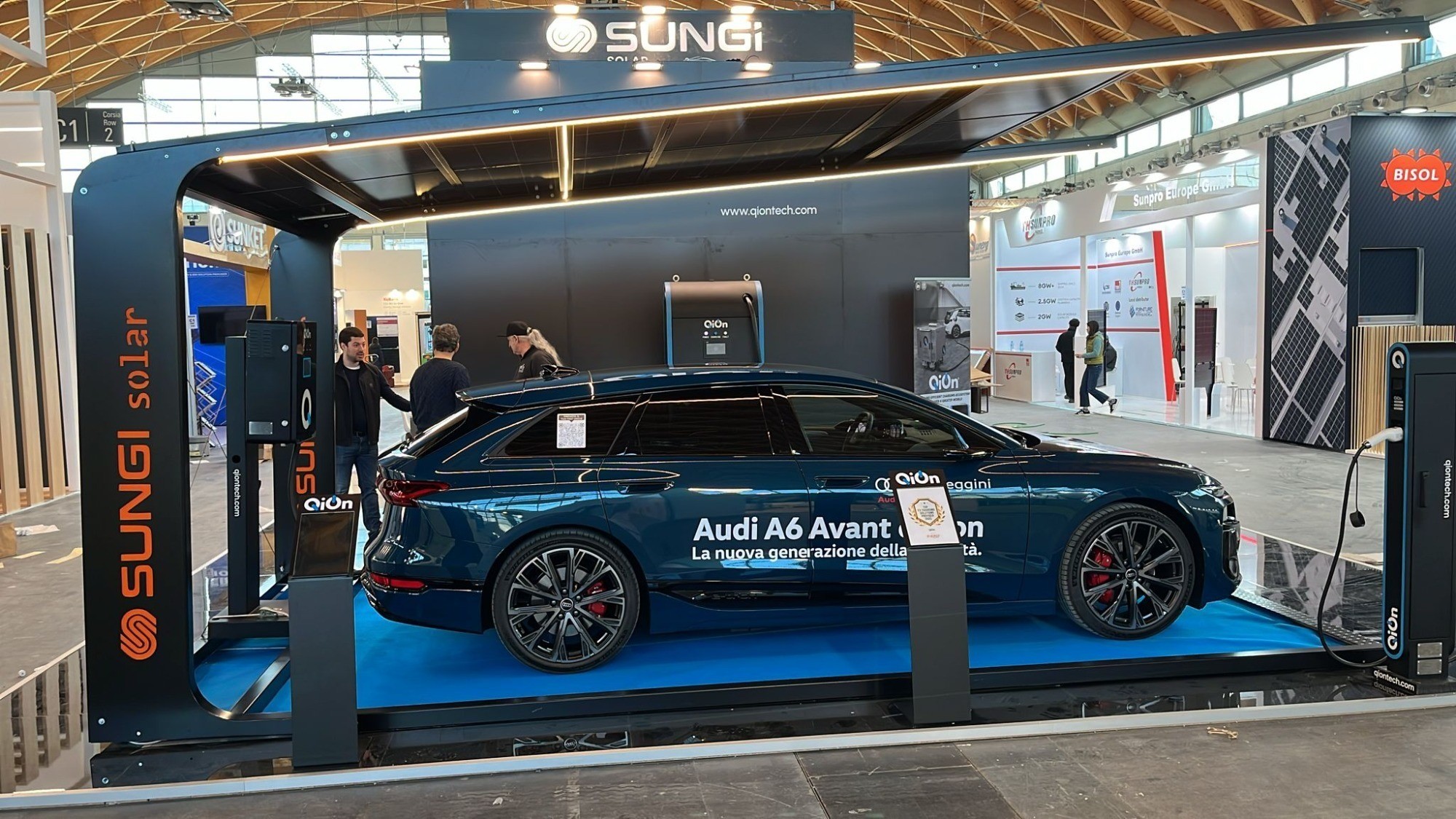

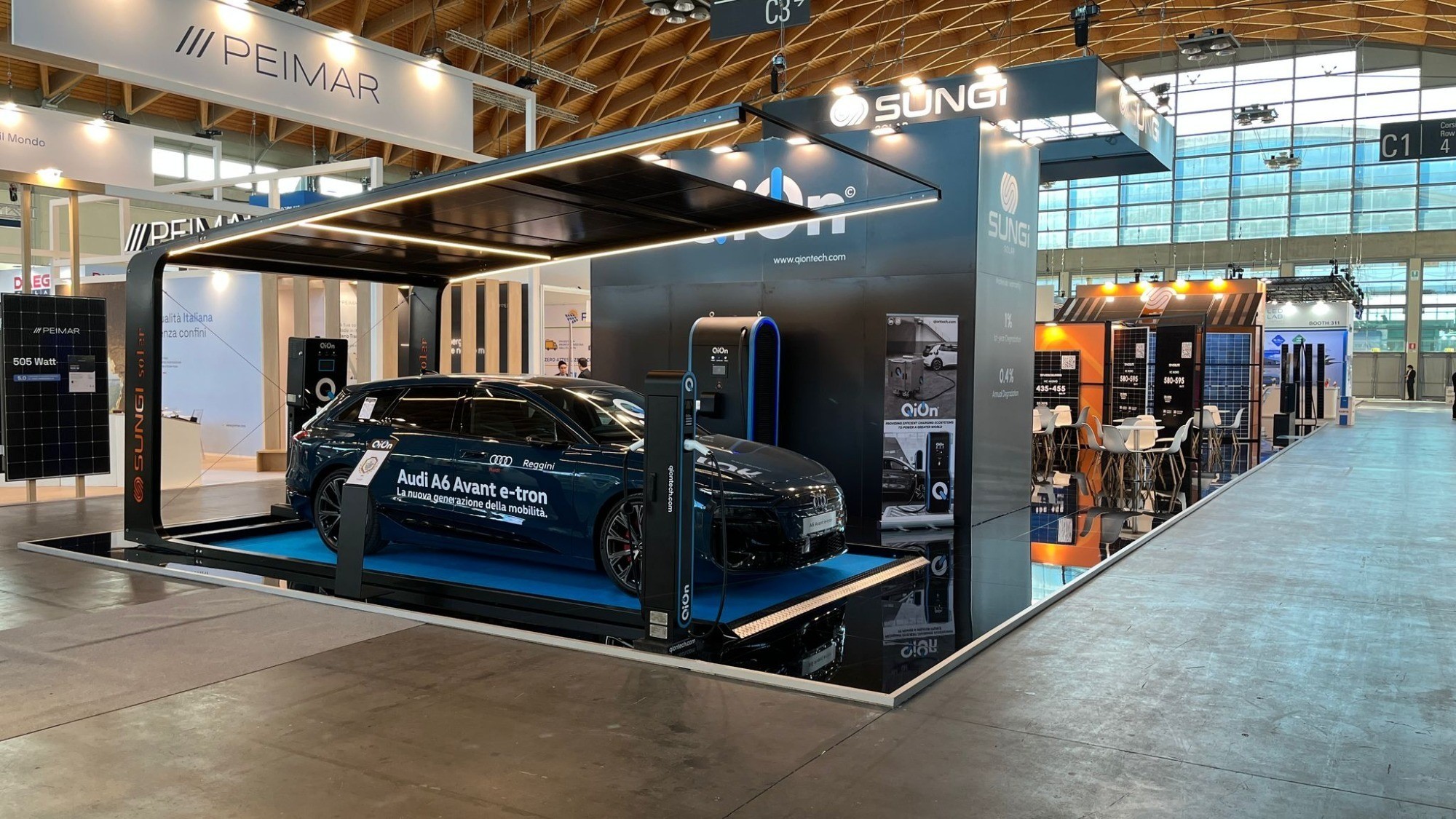

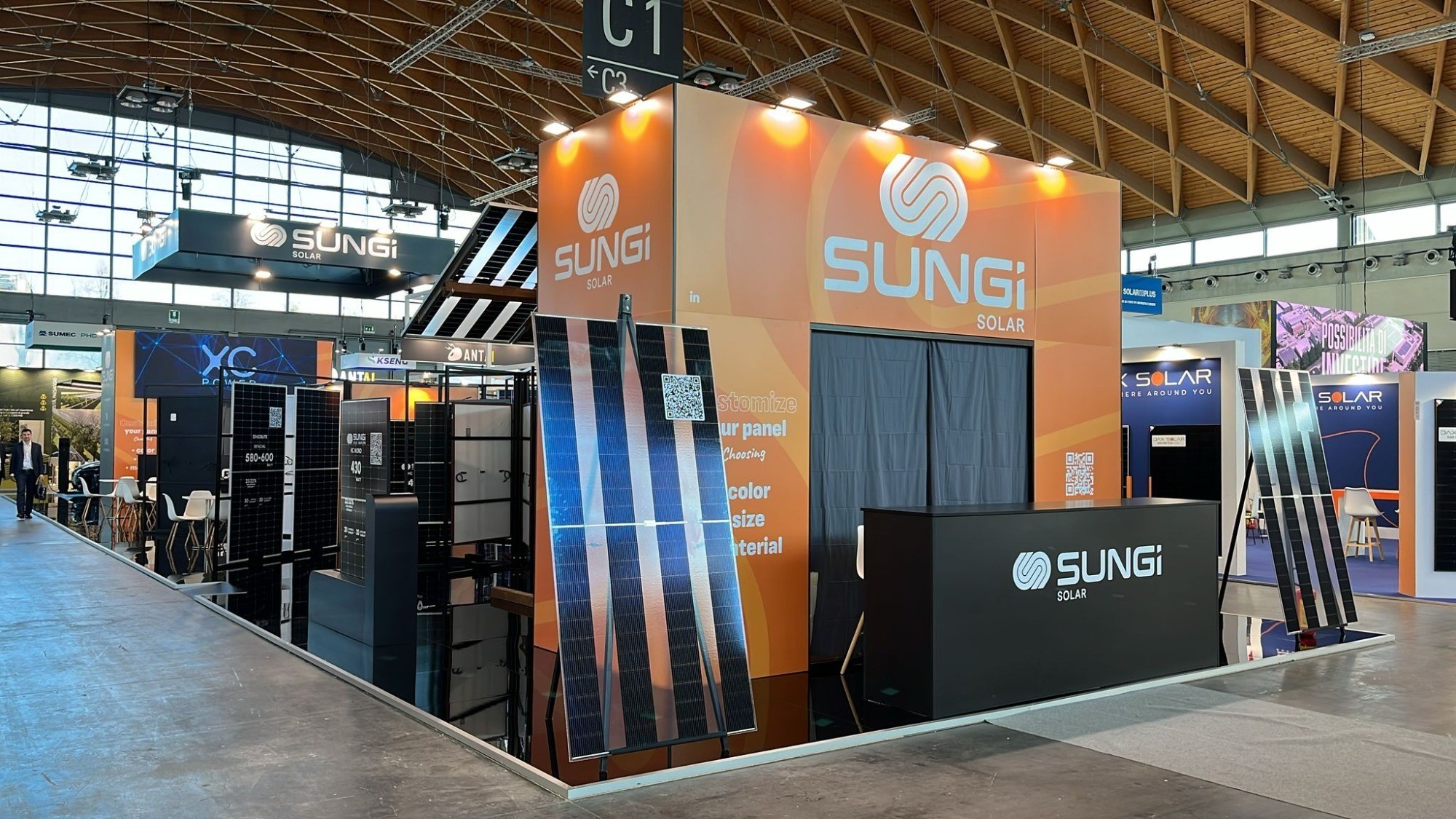

Expo
