QNHT-2 N type 600-620W

安徽秦能光电有限公司

电池技术：	TOPCon
功率范围：	600 ~ 620 Wp
地区：	中国大陆

联系生产商

注意： 您的询盘将直接发送至安徽秦能光电有限公司。

描述：

产品信息
公司档案页

产品特点

类型

单晶硅

产品型号

QNHT-2 600

QNHT-2 605

QNHT-2 610

QNHT-2 615

QNHT-2 620

质量保证

产品质量保证

15 年

电性能参数（STC）

峰值功率（Pmax）

600 Wp

605 Wp

610 Wp

615 Wp

620 Wp

峰值工作电压（Vmpp）

39.81 V

40.01 V

40.21 V

40.41 V

40.6 V

峰值工作电流（Impp）

15.07 A

15.12 A

15.17 A

15.22 A

15.27 A

开路电压（Voc）

47.43 V

47.65 V

47.88 V

48.1 V

48.32 V

短路电流（Isc）

16.01 A

16.07 A

16.13 A

16.19 A

16.24 A

组件效率

22.2 %

22.4 %

22.6 %

22.8 %

23 %

标准测试条件（STC）：太阳能辐射通量1000W/m²，大气参数1.5，组件温度25℃。

电性能参数（NOCT）

峰值功率（Pmax）

454 Wp

457 Wp

461 Wp

465 Wp

469 Wp

峰值工作电压（Vmpp）

37.62 V

37.81 V

38 V

38.19 V

38.37 V

峰值工作电流（Impp）

12.06 A

12.1 A

12.14 A

12.18 A

12.22 A

开路电压（Voc）

45.06 V

45.27 V

45.48 V

45.7 V

45.9 V

短路电流（Isc）

12.81 A

12.86 A

12.9 A

12.95 A

12.99 A

最大耐久温度

43±2 °C

电池片标称工作温度（NOCT）：太阳能辐射通量800W/m²，大气参数1.5，环境温度20℃，风速1 m/s。

温度特性

工作温度

-45~+85 °C

温度系数（Pmax）

-0.380 %/°C

温度系数（Voc）

-0.289 %/°C

温度系数（Isc）

+0.055 %/°C

系统集成参数

最大系统电压

1500 V

保险丝额定电流

30 A

物理参数

组件尺寸（高/宽/厚）

2382x1134x35 mm

重量

32.8 kg

电池片规格

210×210 mm

电池片数量

132

玻璃类型

防反射镀膜，钢化

玻璃厚度

3.2 mm

密封材料类型

EVA

背板类型

PET

边框类型

阳极氧化铝

旁路二极管数

接线盒防护等级

IP 68

连接器类型

MC4

电缆截面

4 mm²

电缆长度

300 mm

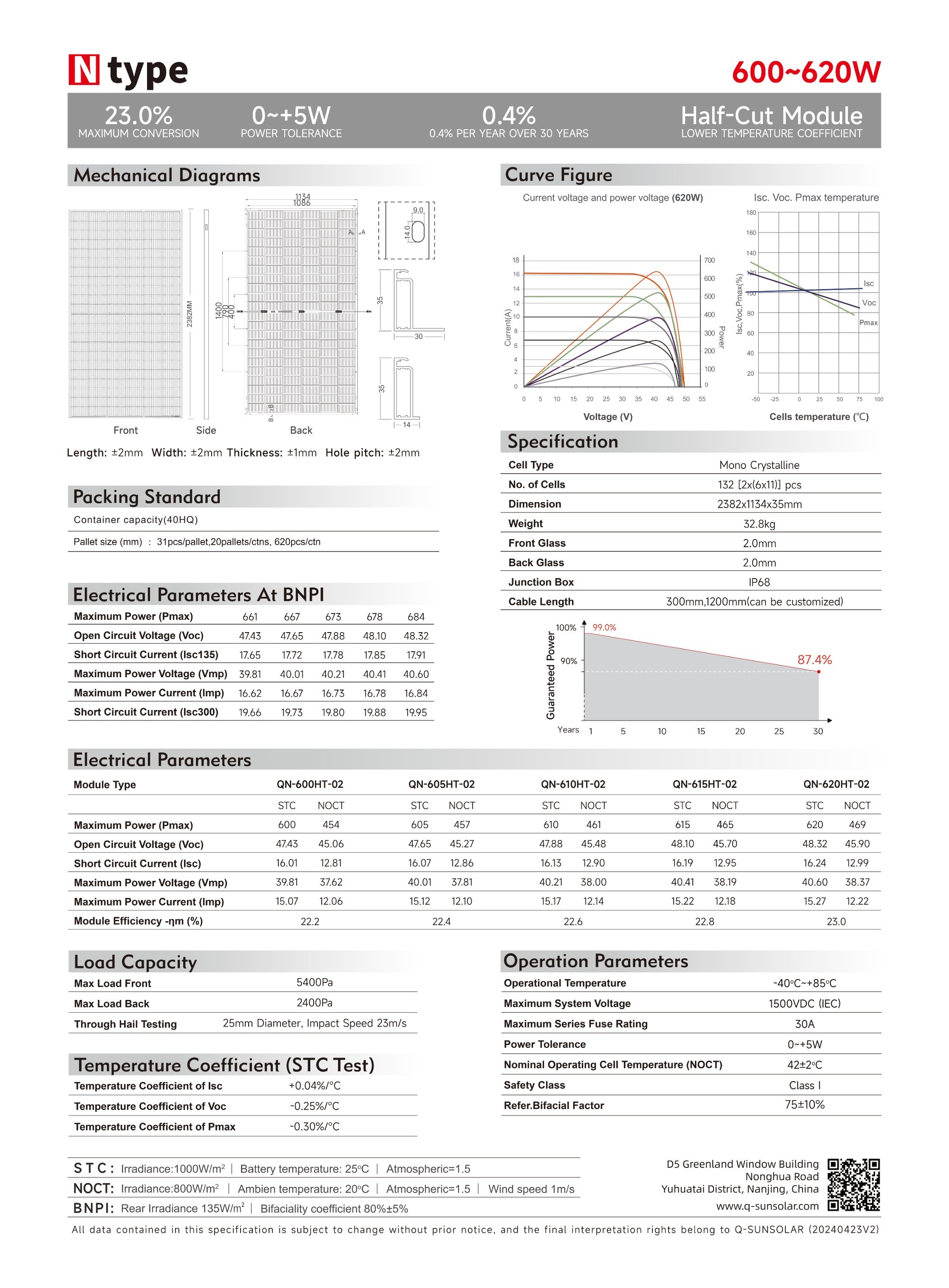

PDF

下载公司产品详情

Mercury Series

The Q-Sun Solar Mercury Series represents the latest advancement in photovoltaic technology with our N-type Topcon PV modules. This series offers power outputs ranging from 400W to 720W, with efficiency levels between 22.5% and 23%.

The Mercury Series is available in three categories: mono-facial modules, bifacial modules with a transparent backsheet, and bifacial double glass modules. Each category is meticulously designed to ensure exceptional durability and resistance to harsh environmental conditions, including high levels of ammonia, salt mist, sand, and dust. Additionally, these modules exhibit strong resistance to potential-induced degradation and comply with various industry standards such as IEC, CE, and TÜV certifications.

Nebula Series

The Q-Sun Solar Nebula Series is an advanced range of heterojunction solar cells (HJT) that features high-efficiency energy absorption and conversion capabilities.

The Nebula Series is characterized by its lower temperature coefficients and excellent low-light performance, making it particularly suitable for high-temperature environments. As a next-generation solar cell technology, the Nebula Series boasts an efficiency of over 24% and offers power outputs up to 730W.

Onyx Series

The Q-Sun Solar Onyx Series is renowned for its full-black panels and modern design, specifically crafted for residential photovoltaic markets with high aesthetic and performance demands.

The Onyx Series panels feature a pure black surface with no metal grid lines, blending seamlessly with various roofing styles. This all-black design enhances the aesthetic value of rooftops while meeting stringent architectural standards, making it an ideal choice for projects that prioritize both high performance and elegant design.

Production Base

Q-SUN has established itself as a frontrunner in the domain of intelligent production and manufacturing of photovoltaic modules. Since its inception in 2014 in Chuzhou, situated along the Yangtze River, the company has seen significant growth.

With a decade of focused industrial evolution, Q-SUN now operates three international research and manufacturing hubs, annually delivering over 4GW of efficient photovoltaic modules. These products serve close to a million users across more than 90 countries, ensuring consistent electrical supply and yielding economic advantages to its global clientele.

Certifications

Our Partners

安徽秦能光电有限公司

: Click to show company phone
: www.q-sunsolar.com
: 中国大陆
: Building 1, South District, Tiankang Group, Jingba Road, Tianchang, Chuzhou, Anhui

员工数： 500

联系生产商

注意： 您的询盘将直接发送至安徽秦能光电有限公司。

晶体硅

产量 (MW)/： MWp

单晶硅，多晶硅

功率范围(Wp)： 370-720

薄膜

产量 (MW)/： MWp

非晶硅：单结

功率范围(Wp)： -

新型组件设计

产量 (MW)： --

透明太阳能电池，屋顶瓦以及屋顶板

功率范围(Wp)： -

有用联系人

Queenie Chow

Joanna.Qin

Freesia.Yu

Miranda.Jiang

Dianne.Wu

Maria Zhang

Aysha Aziz

antoniu.farcas

Berry.Chen

公司描述

Q-SUN集团是领先的清洁能源综合解决方案提供商，专注于光伏组件的研发、生产和销售。我们在光伏行业的智能生产和制造方面处于领先地位。我们的国际营销中心成立于2014年，位于南京，并在天长、盐城、阿曼和保加利亚设有生产基地。Q-SUN集团在光伏组件研发和生产方面拥有十多年的专业知识，每年为全球50多个国家和地区的近百万用户提供超过8GW的高效光伏组件，为我们的全球客户持续创造电力和经济效益。

我们拥有一支由300名员工组成的专注团队，维持着接近8GW的生产能力。我们的四个生产中心均严格遵守国际标准，获得了ISO 9001、ISO 14001和ISO 45001认证，且我们的光伏模块制造过程符合德国TÜV根据IEC标准的审批要求。此外，我们还获得了ISO碳足迹认证和意大利防火认证，进一步确保产品的环境性能和安全性。

Q-SUNsolar与中国2021年的碳中和倡议保持一致，作为推动可持续能源解决方案的关键参与者，致力于推动家庭和商业光伏应用的进步。我们深深植根于“与世界分享阳光”的使命，旨在重新定义全球能源消费，为可持续和更加光明的未来做出贡献。

其他办事处

国家：

中国大陆

电话：

+8613913019669

电子邮件：

info@q-sunsolar.com

地址：

D5 Greenland Window Building, Nonghua Road, Yuhuatai District, Nanjing, China

国家：

中国大陆

电话：

+8613913019669

电子邮件：

info@q-sunsolar.com

地址：

South Side Of Weiyi Road, West Side Of Jingqi Road, Tianchang, Chuzhou, Anhui, China

国家：

德国

电话：

+8613913019669

电子邮件：

info@q-sunsolar.com

地址：

Industrie Str.14, 82110, Germering, Germany

国家：

美国

电话：

+8613913019669

电子邮件：

info@q-sunsolar.com

地址：

1500 11th Street, Sacramento , 95814

国家：

新加坡

电话：

+8613913019669

电子邮件：

info@q-sunsolar.com

地址：

2 VENTURE DRIVE #06-05 VISION EXCHANGE SINGAPORE(608526）

评价

I am delighted to recommend Q-SUN Anhui Co., Ltd. and their exceptional photovoltaic (PV) panel products. Q-SUN Anhui has established itself as a leading provider in the solar energy industry, renowned for its commitment to quality, innovation, and customer satisfaction. Their PV panels consistently demonstrate outstanding performance, reliability, and durability, making them a preferred choice for residential, commercial, and utility-scale solar projects alike. Q-SUN Anhui's dedication to innovation is evident in their investment in cutting-edge technology and continuous research and development efforts, ensuring their panels remain at the forefront of the industry. Additionally, their stringent quality control measures guarantee that customers receive products of the highest standard. With a focus on sustainability and environmental responsibility, Q-SUN Anhui's PV panels contribute to a cleaner and more sustainable future while providing excellent returns on investment for their customers. For those seeking top-quality PV panels backed by expertise and integrity, Q-SUN Anhui Co., Ltd. stands out as an exemplary choice.

-- jojo, 互宇数字能源科技(深圳)有限公司

产品

Product Series

Mercury Series

Nebula Series

The Q-Sun Solar Nebula Series is an advanced range of heterojunction solar cells (HJT) that features high-efficiency energy absorption and conversion capabilities.

Onyx Series

The Q-Sun Solar Onyx Series is renowned for its full-black panels and modern design, specifically crafted for residential photovoltaic markets with high aesthetic and performance demands.

Production Base

Q-SUN has established itself as a frontrunner in the domain of intelligent production and manufacturing of photovoltaic modules. The company has seen significant growth since its inception in 2014 in Chuzhou City, situated along the Yangtze River.

With a decade of focused industrial evolution, Q-SUN operates three international research and manufacturing hubs, annually delivering over 4GW of efficient photovoltaic modules. These products serve nearly a million users across more than 90 countries, ensuring consistent electrical supply and yielding economic advantages to its global clientele.

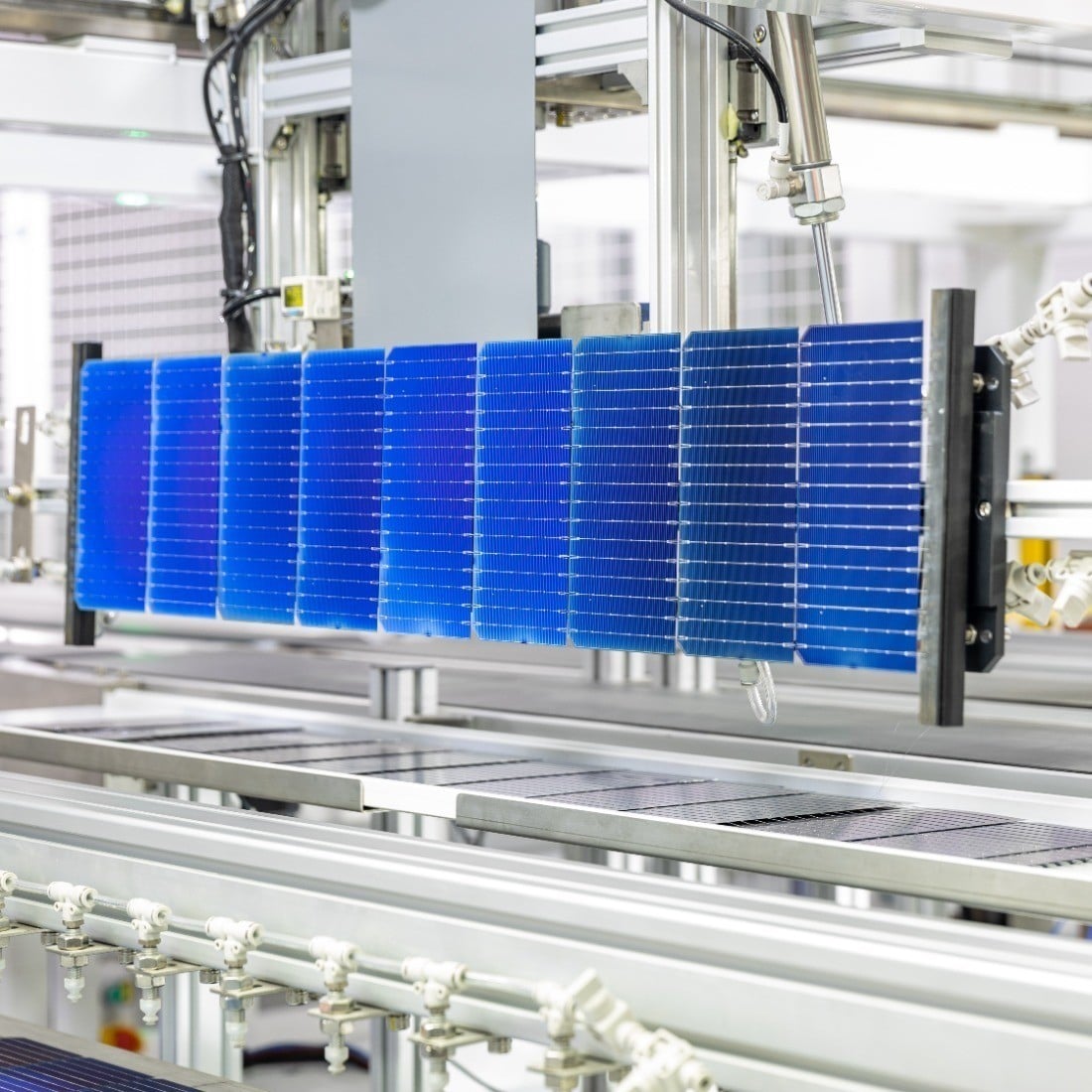

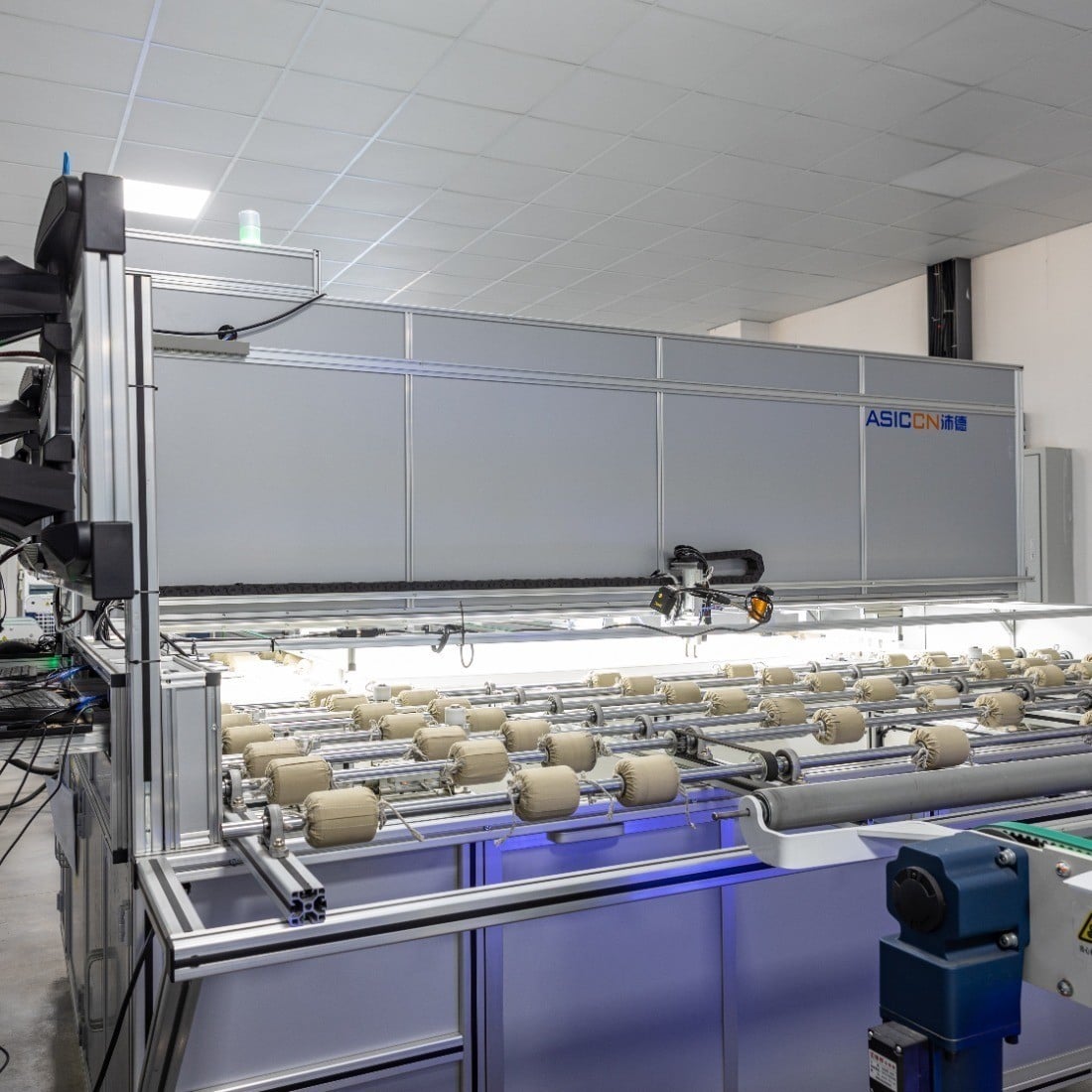

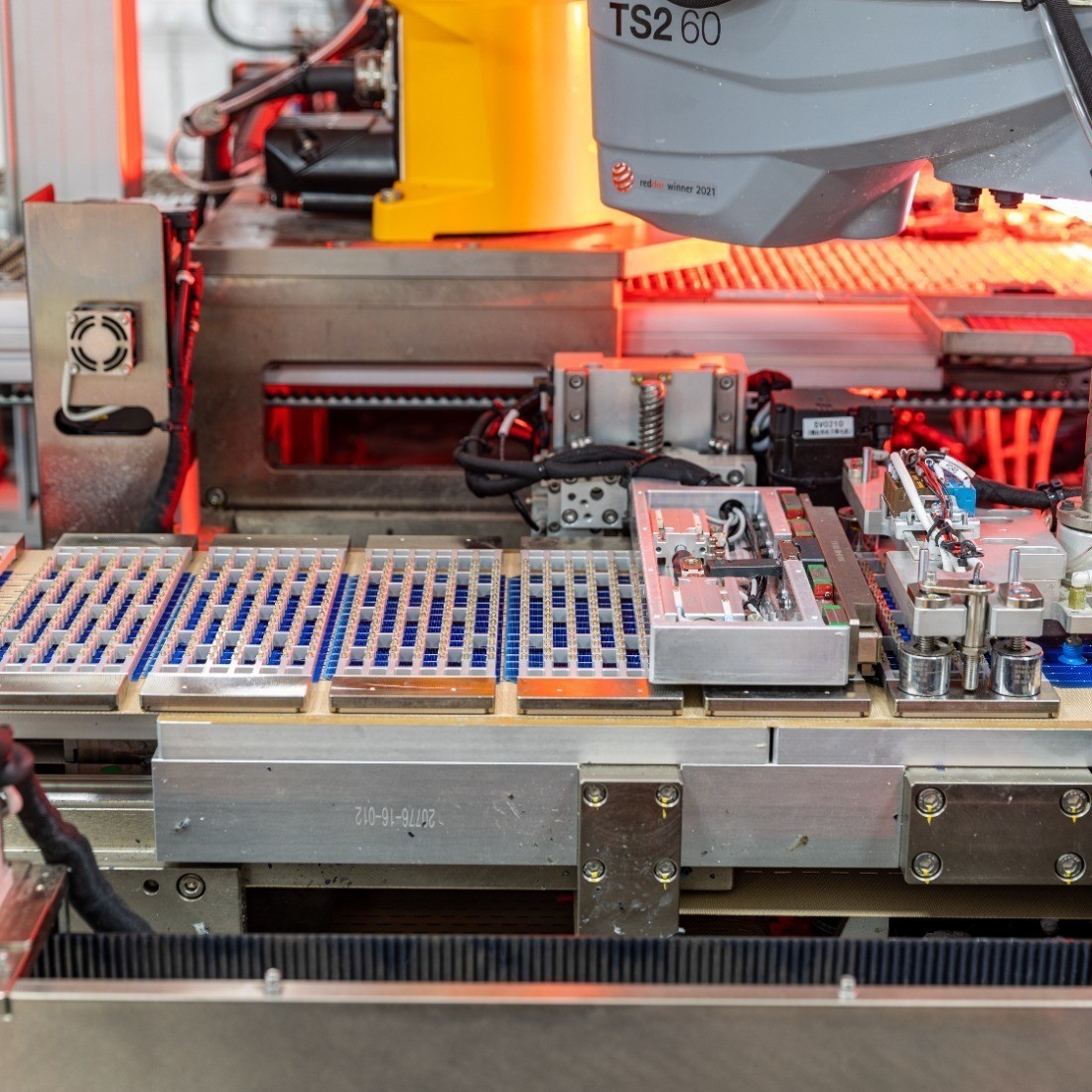

Automatic Manufacturing
