Flexible height and angle adjustment, applicable for different types of land forms.
Flexible for horizontal or vertical installation.
Highly pre-assembled before shipment, saving on-site installation time and labor cost.
产品型号 |
|
|
---|---|---|
产品质量保证 | 15 年 | |
系统概述 | ||
类型 | 地面型 | |
支架系统排列方式 | 按行排 | |
组件边框 | 有边框 | |
组件排列方向 | 纵向,横向 | |
倾斜角度 |
|
|
风荷载 |
|
|
雪荷载 |
|
|
一般参数 | ||
轨道材质 | 铝,镀锌钢 | |
零部件材质 | 铝,镀锌钢 |
AS Steel-Aluminum Solar Ground Mounting System uses aluminum alloy and hot-dip galvanized section steel structure, making the system more cost-effective compared with all-aluminum structure, more efficient in installation compared with all-steel structure.
The hot-dip galvanized surface treatment ensures anti-corrosion and durability of the system.
Flexibility in height and angle adjustment makes the system applicable for different types of landforms.
Product | AS Solar Pole Ground Mounting Standing Support |
Application | Ground |
Foundation | Concrete Base, Ground Screw, C/H Steel |
Tilt Angle | 0° to 60° |
Wind Speed | 60 m/s |
Snow Load | 1.4 KN/m² |
Solar Panel | Framed or Frameless |
Panel Layout | Portrait or Landscape |
Design Standard | AS/NZS 1170,DIN 1055,JIS C8955:2017,International Building Code IBC 2009 |
Structure Material | Hot-dip Galvanized Steel/ MAC(Mg-Al-Zn treatment)/Aluminum |
Warranty | 15 years |
Xiamen Angels Solar Energy Co.,Ltd specializes in designing, manufacturing and promoting solar mounting system.

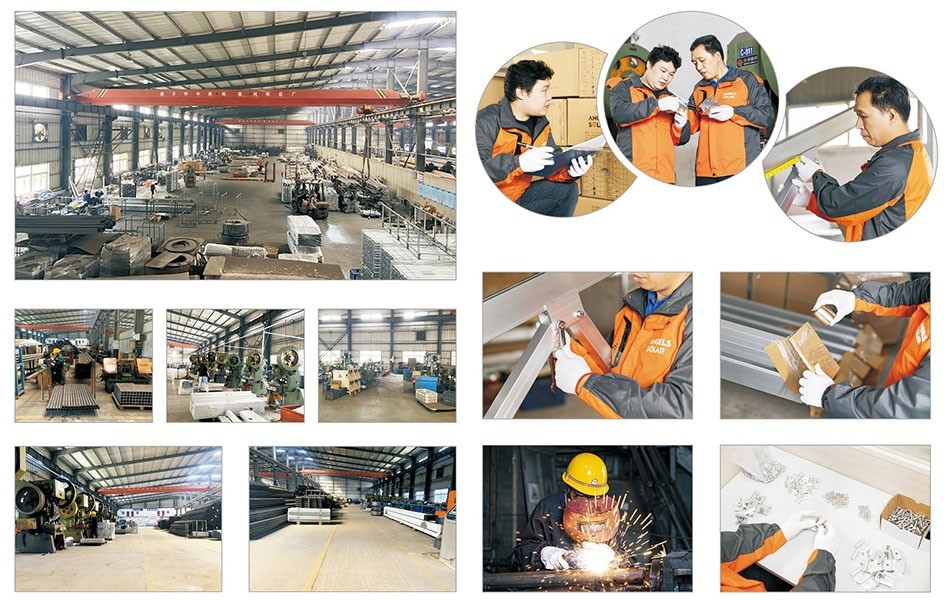

With mother company having over 12 years experience of ODM and manufacturing galvanized steel and aluminum structures. The experience of metallic structures an raw materials supply chain management, as well as quality inspection and control, makes Angels Solar competitive in delivering solar mounting solutions and products that are cost-effective and solid.
With dedicated and experienced R&D engineering team and efficient supply chain, we have launch a series of solar mounting system covering residential, commercial and utility application, and we are determined to become an all-round solar mounting solution and product provider. "Quality Value Service" is the principle we pursue. We deliver value of mounting structures in solar projects by innovation in product design, we satisfy our customers by providing professional service throughout the whole process o project planning, design, delivery and commissioning.
Together with customers, suppliers and fellow companies, we look forward to building a society of sustainable development and a greener future.
厦门元聚荣能源科技有限公司是一家专业从事太阳能安装系统的设计、制造和推广的企业。
随着母公司拥有超过14年的ODM和生产镀锌钢和铝结构的经验,厦门元聚荣从2019年开始设计和提供太阳能安装系统。
在金属结构、原材料供应链管理以及质量检验和控制方面的经验,使厦门元聚荣在提供具有成本效益和可靠性的太阳能安装解决方案和产品方面具有竞争力。
我们拥有专业、经验丰富的研发工程团队和高效的供应链,推出了涵盖住宅、商用和公用事业应用的系列太阳能安装系统,立志成为全方位的太阳能安装解决方案和产品供应商。
“品质价值服务”是我们追求的原则。我们通过创新的产品设计,在太阳能项目中传递安装结构的价值,我们通过在项目规划、设计、交付和调试的整个过程中提供专业的服务,以满足我们的客户。
我们与客户、供应商和其他公司一起,期待建设一个可持续发展的社会和一个更绿色的未来。
