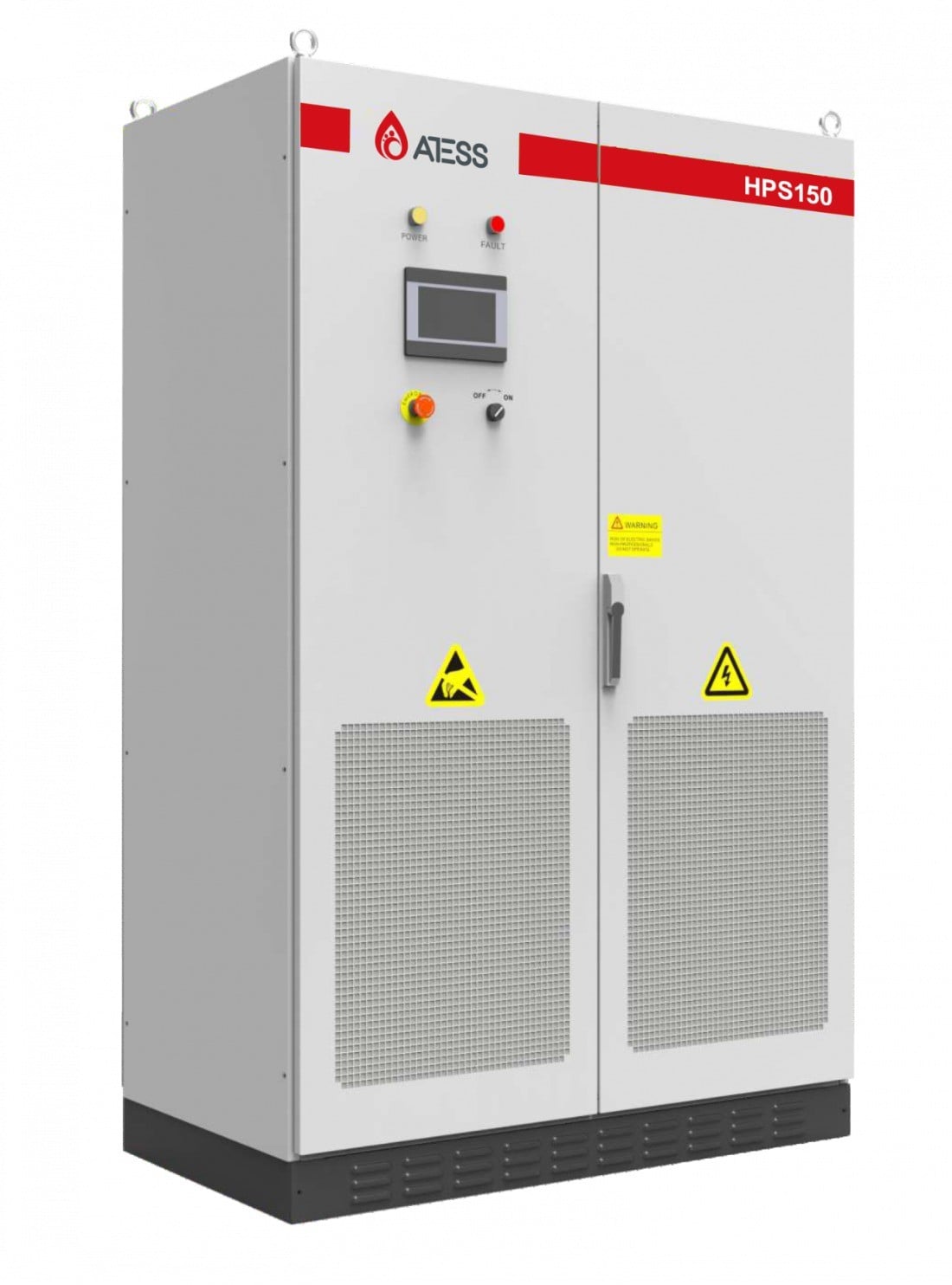

HPS100/150HV

HPS100/150HV

深圳时代能创能源科技有限公司
类型: 混合
功率范围: --
地区: 中国大陆 中国大陆
联系生产商
注意: 您的询盘将直接发送至深圳时代能创能源科技有限公司

产品特点

产品型号
HPS100-HV HPS150-HV
输入参数(直流)
最大输入功率
150 kW 225 kW
最大输入电流
160 A 160 A
MPP(T)电压范围
900~1300 V 900~1300 V
MPPT数量
2 2
输出参数(交流)
标称输出功率
100 kW 150 kW
交流电压范围
360~440 V 360~440 V
额定交流电压
400 V 400 V
额定交流电流
144 A 217 A
频率范围
45-65 Hz 45-65 Hz
频率
50, 60 Hz 50, 60 Hz
相数
3 3
一般参数
尺寸(高/宽/厚)
1900x1200x800 mm 1900x1200x800 mm
重量
948 kg 1230 kg
噪音干扰级别
< 65 dB(A) < 65 dB(A)
工作温度范围 -25 ~ +55 ℃
变压器
散热方式 风扇冷却
最高运行海拔 6000 m
通讯接口 RS 485
显示屏 LCD
PDF
下载公司产品详情

深圳时代能创能源科技有限公司

+86 755 29988492
www.atesspower.com
中国大陆
广东省深圳市宝安区石岩水田恒隆工业园9栋三层,B区3栋一层
员工数: 350
母公司: Growatt New Energy
注意: 您的询盘将直接发送至深圳时代能创能源科技有限公司
公司描述

Founded in 2017, Shenzhen ATESS Power Technology Co.,Ltd is a global supplier of solar energy storage and EV charging solutions, who is dedicated to developing and delivering affordable clean energy to every corner of the world, offering our customers worldwide the possibility for energy independence.

ATESS boasts an R&D team of over 100 highly experienced engineers. Our laboratory is fully equipped with advanced testing instruments to ensure top-notch product performance and quality, as well as customers' needs. We dedicate around 15% of our annual revenue to research and development each year to keep our products competitive.

Over the past years, ATESS has helped thousands of users and companies produce and consume green energy independently according to their individual needs, saving millions of tonnes of CO₂ emission. This motivates us to continually strive to create and innovate, on the universal carbon neutralization goal, and also a greener future energized by renewable energy technology.

产品视频

评价

Great service, very professional, excellent communication. Our customers are very pleased with their products.

-- Eric James, eric james

The inverters seem to be of high quality. atesspower's staff kept me informed at every step of the process.

-- William Petsén, Sunavia AB, Sunavia AB

产品

ATESS Integrated Energy Storage Solutions

ATESS solar energy storage product portfolio covers 5kW to 630kW integrated solar energy storage solutions, including hybrid/off-grid inverters, solar charge controllers, bypass cabinets, lithium battery solutions, and intelligent monitoring systems. The efficient, bankable, and flexible systems are ideal for residential, C&I, or utility applications. Additionally, custom service can be provided according to client demand. It’s been proven by reliability lab and real cases that our energy storage system is durable in harsh environments like islands, deserts, seashores, etc. From 2017 to 2019, 45MW, 90MWH+ of our energy storage system has been installed in more than 35 countries, to provide users with clean, uninterrupted energy around the clock.

Main Products

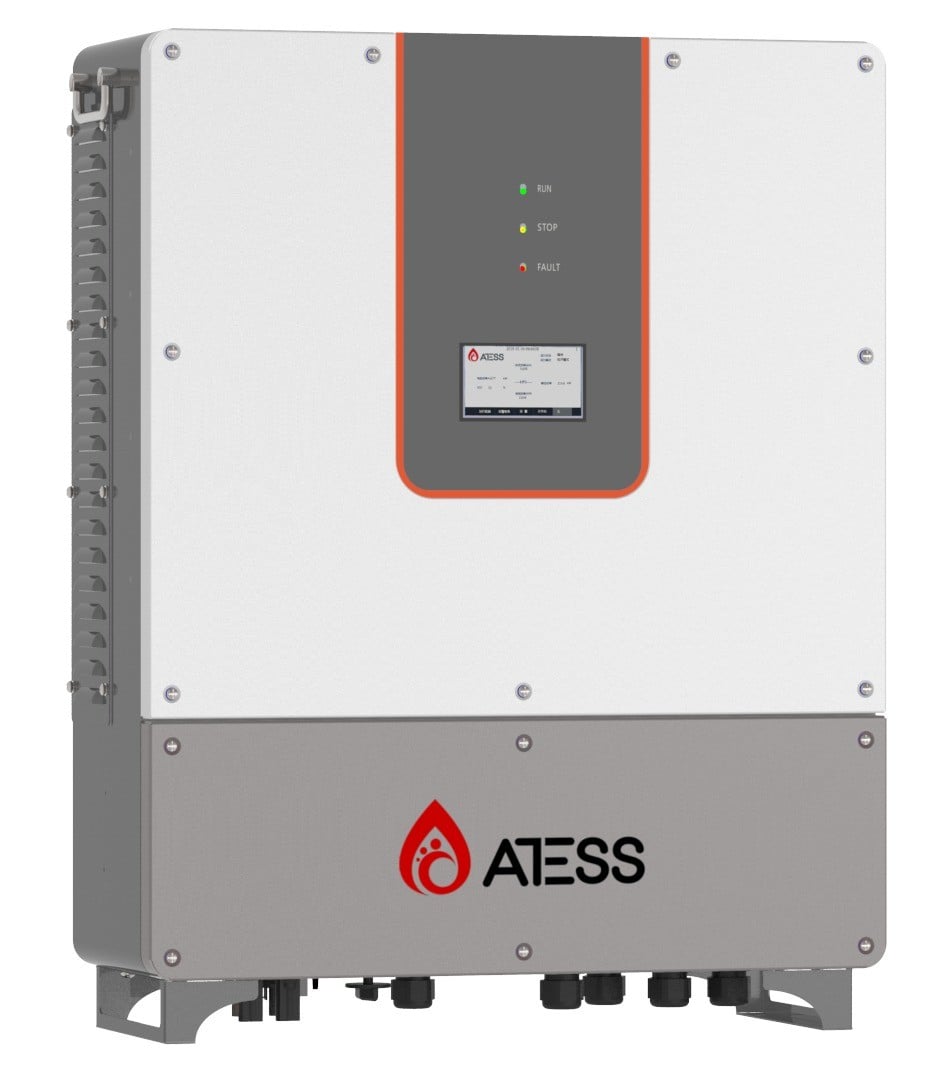

5-10kW storage inverter HPS5000-10000TL/TLS

· All-in-one hybrid inverter

Battery, load, grid, and solar connection are all supported

· Touchscreen LCD

More convenient for parameter setting and maintenance

· Programmable working mode

Peak-shaving, backup, use the system however you want it

· Seamless transfer

Uninterrupted power supply guaranteed

· Compact design

Transformerless topology, light and small in size

· Dry contact output

Supports remote control of DG

30-150kW storage inverter HPS30-150

· All-in-one hybrid inverter

Battery, load, grid, and solar connection all supported

· Programmable working mode

Peak-shaving, backup, use the system however you want it

· Scalable design

Doubled capacity by paralleling 2 units

· Touchscreen LCD

More convenient for parameter setting and maintenance

· Seamless transfer

Uninterrupted power supply guaranteed

· Dry contact output

Supports remote control of DG

50-630kW battery inverter PCS50-630

· Flexible Configuration

Configured with solar charge controller, bypass cabinet, or stand-alone

· Programmable working mode

Peak-shaving or backup, use the system based on your preferences.

· Scalable

Applicable in MW level system by paralleling multiple units

· Touchscreen LCD

More convenient for parameter setting and maintenance

· Dry contact output

Supports remote control of DG

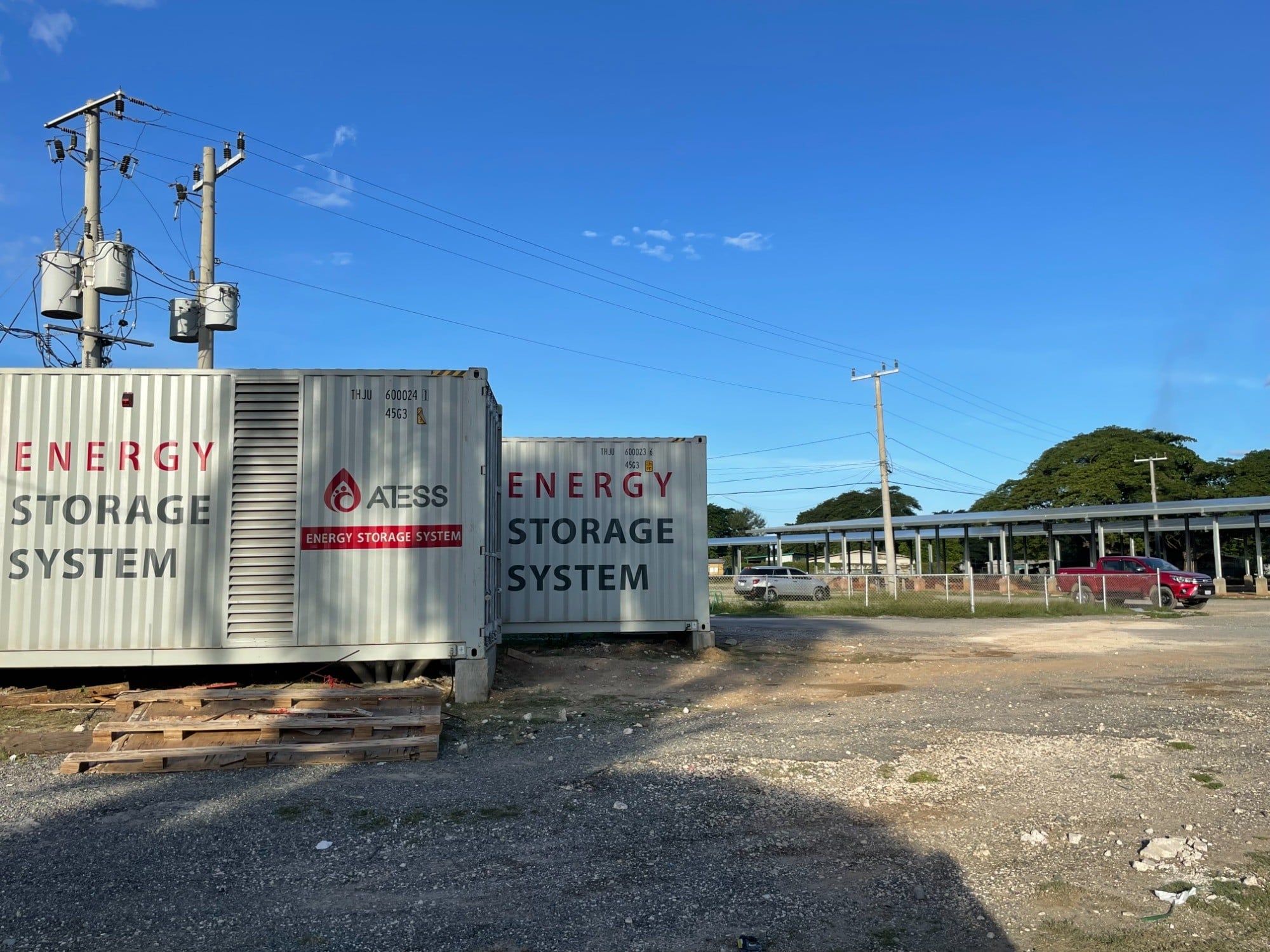

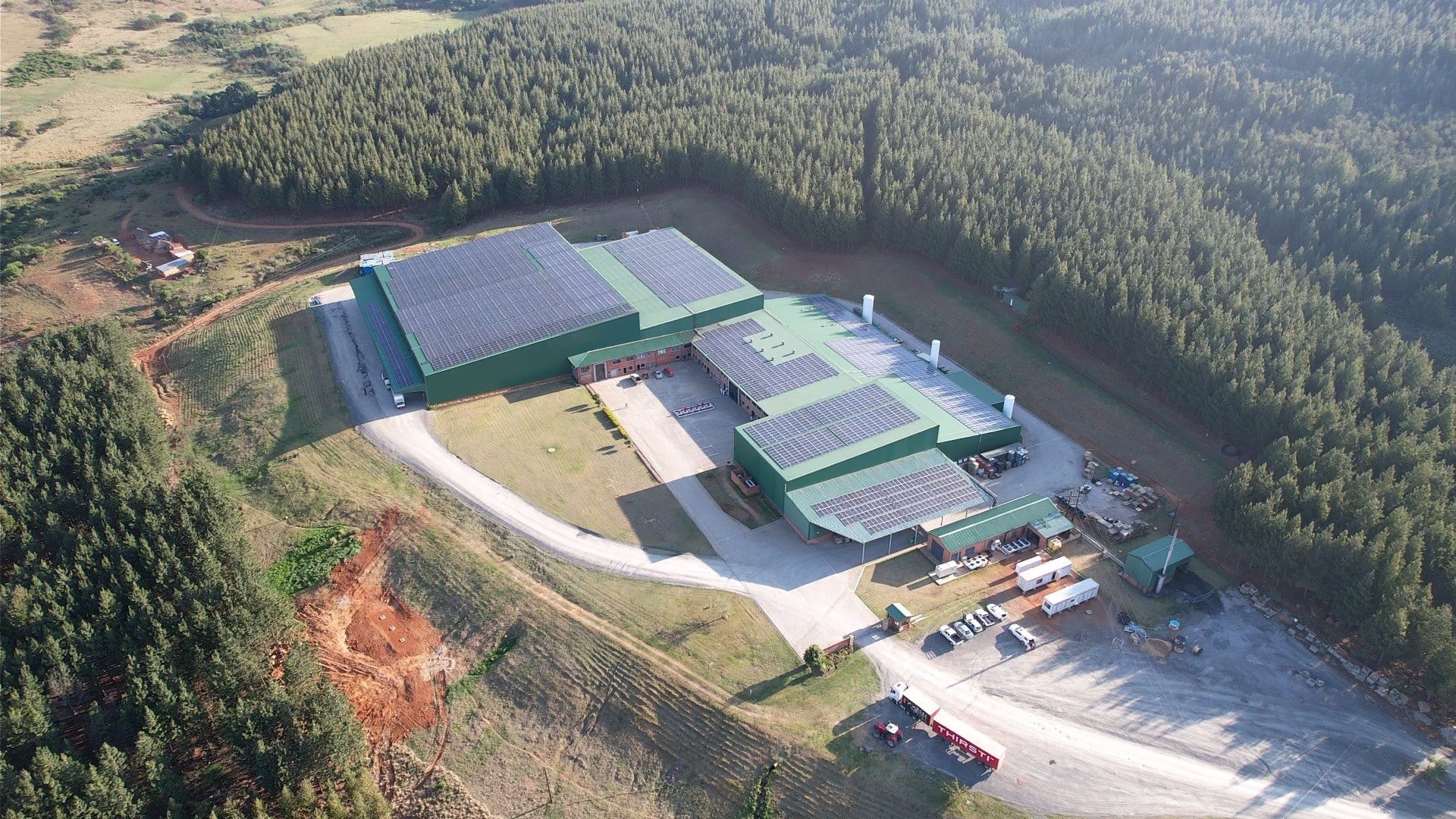

Projects
Certifications
Exhibitions

来自深圳时代能创能源科技有限公司的其他4个系列产品‎

  • ¥0.965 / Wp *
    HPS30/50/100/12...
    30~150 kW 混合
  • ¥0.338 / Wp *
    PCS100/250/500/...
    110~693 kW 混合
  • ¥1.29 / Wp *
    HPS5K-10KTLS
    6.25~12.5 kW 混合
  • ¥1.35 / Wp *
    HPS7.5K-10KTL
    9.4~12.5 kW 离网,混合
