Zeus Three Phase High Voltage RCM-300/320/333/350-TP-M-HV

Zeus Three Phase High Voltage RCM-300/320/333/3...

Recom Technologies Ltd
类型: 并网
功率范围: --
地区: 意大利 意大利
联系生产商
注意: 您的询盘将直接发送至Recom Technologies Ltd

描述:

  • IP66 protection level and NEMA4X for the US

  • Maximum efficiency up to 99%

  • 500~1500 Vdc MPPT voltage range

  • Maximum 6 MPPTs, 5 strings per MPP tracker

  • Maximum 75A MPPT current

产品特点

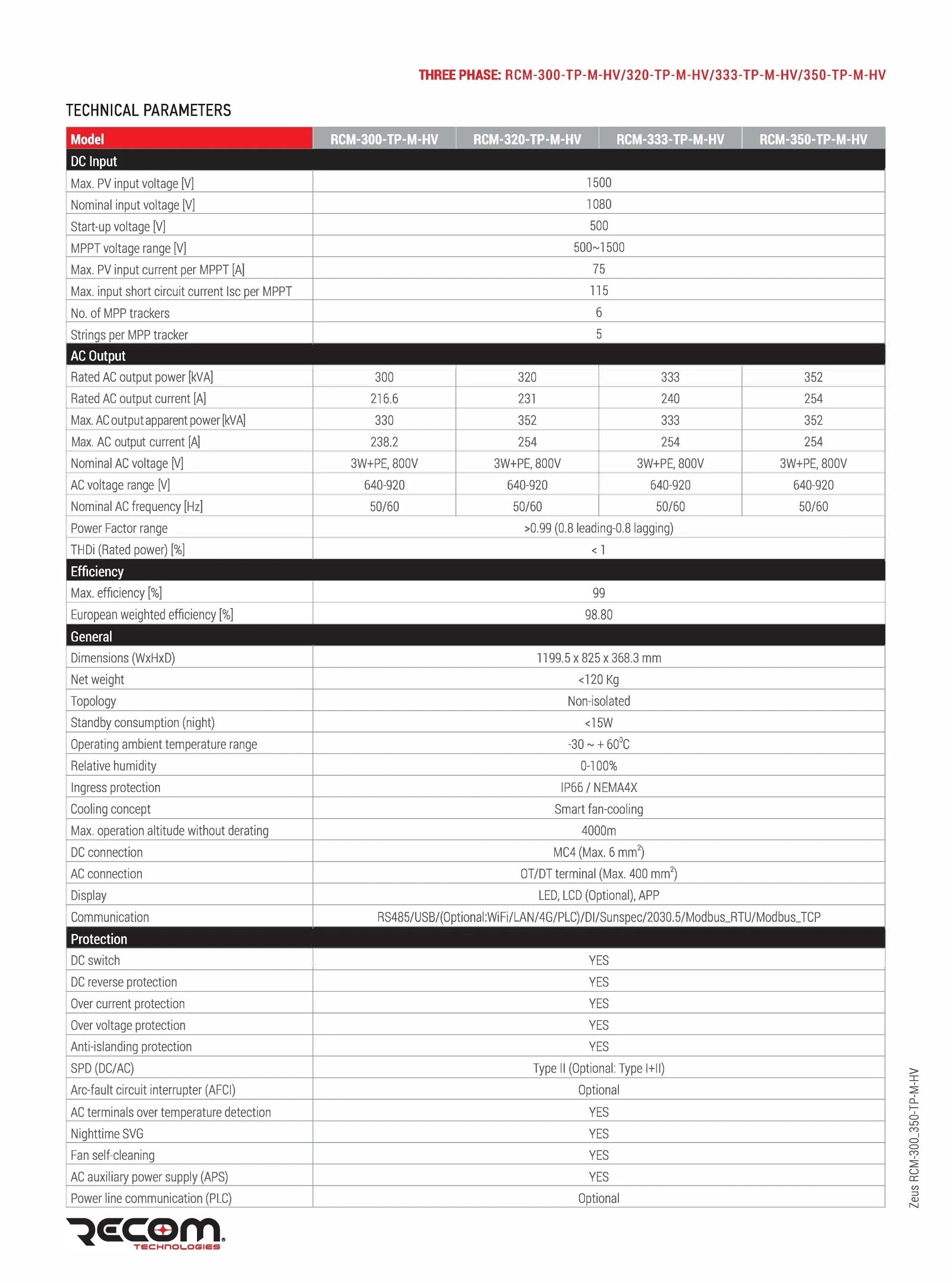

产品型号
RCM-300-TP-M-HV RCM-320-TP-M-HV RCM-333-TP-M-HV RCM-350-TP-M-HV
质量保证
产品质量保证 (最低)
5 年 5 年 5 年 5 年
输入参数(直流)
最大输入电压
1500 V 1500 V 1500 V 1500 V
标称输入电压
1080 V 1080 V 1080 V 1080 V
最小输入电压
500 V 500 V 500 V 500 V
最大输入电流
450 A 450 A 450 A 450 A
MPP(T)电压范围
500~1500 V 500~1500 V 500~1500 V 500~1500 V
MPPT数量
6 6 6 6
直流输入连接端数
30 30 30 30
连接器
MC4 MC4 MC4 MC4
输出参数(交流)
交流电压范围
640~920 V 640~920 V 640~920 V 640~920 V
标称交流电压
800 V 800 V 800 V 800 V
最大输出电流
238.2 A 254 A 254 A 254 A
额定交流电流
216.6 A 231 A 240 A 254 A
频率
50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz
总谐波失真 (THDi)
< 1 % < 1 % < 1 % < 1 %
相数
3 3 3 3
最大效率
99 % 99 % 99 % 99 %
欧洲效率
98.8 % 98.8 % 98.8 % 98.8 %
一般参数
尺寸(高/宽/厚)
825x1199.5x368.3 mm 825x1199.5x368.3 mm 825x1199.5x368.3 mm 825x1199.5x368.3 mm
重量
120 kg 120 kg 120 kg 120 kg
夜间损耗
< 15 W < 15 W < 15 W < 15 W
工作温度范围 -30 ~ +60 ℃
变压器 无变压器
防护等级 IP66, NEMA 4X
相对湿度 0-100 %
散热方式 风扇冷却
最高运行海拔 4000 m
通讯接口 RS 485, USB, WLAN
显示屏 LCD, LED
防护性能
防护性能 反孤岛保护(ENS),过压保护,过流保护,极性反接保护
