GS-Light Intelligent Tracking System (Double Ro...
厦门国瑞能新能源技术有限公司| 类型： | 跟踪器 |
|---|---|
| 地区： |
中国大陆
|
描述：
The number of electronic controls and drives is small, and the failure rate is lower;
Strong adaptability, simple installation, convenient operation and maintenance;
More reasonable design, safer and more reliable;
A more reasonable wind resistance mechanism through wind tunnel test;
| 仓库地点： |
厦门
|
||
|---|---|---|---|
| 型号 | 库存量(件) | 联系生产商 | |

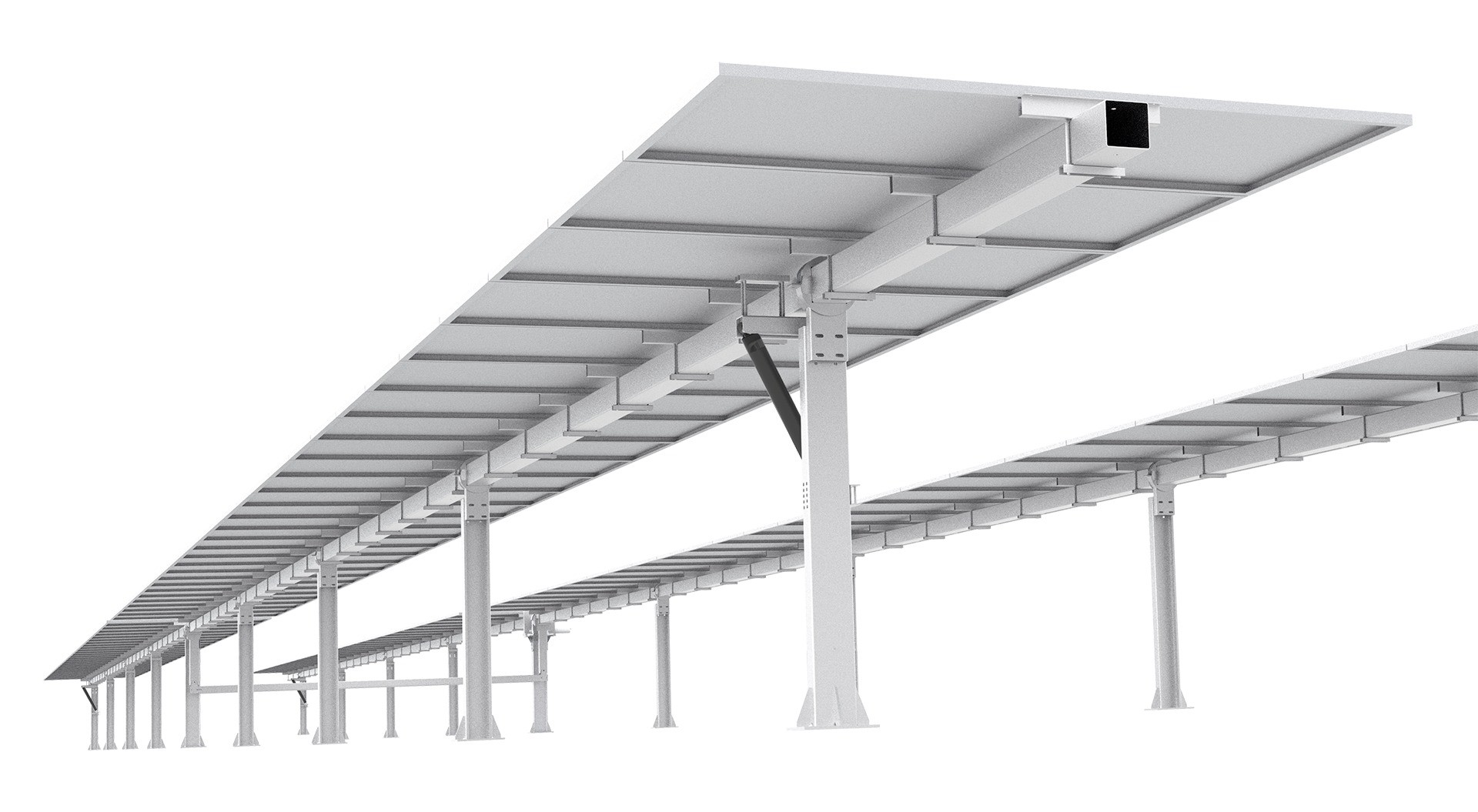

System Introduction
The self-developed two row linkage tracking system adopts larger cross-section and high-strength main beam, with better stiffness, higher natural vibration frequency and more safety and reliability. It is suitable for high-power and large-size modules. Compared with the conventional single row tracking system, the number of electric control and drive is twice less, and the failure rate is lower. Through wind tunnel test, a more reasonable wind resistance mechanism is obtained, which can more effectively protect the 25 year life of the power plant.
Suitable Power Plant Project
It is suitable for power plant projects with relatively flat land, especially in power plant projects with lower cost requirements.
Features
· The number of electronic controls and drives is small,and the failure rate is lower;
· Strong adaptability, simple installation, convenient operation and maintenance;
· More reasonable design, safer and more reliable;
· A more reasonable wind resistance mechanism through wind tunnel test;
· AI intelligent control system can increase production capacity output by 6%;
· DC string and lithium battery backup power supply,reducing LCOE cost.
Technical Information
Mechanical Aspect
Number of tracker drive modules
2X60
Number of motors per tracker
1
Tracking range
±60°
North-south land slope
＜15°
Mechanical tracking accuracy
±2°
Protection wind speed
18m/s
Land occupation rate
30%
Material
Hot-dip galvanized steel + aluminum-magnesium-zinc plate + pre-galvanized
East-west land slope
＜5%
Module arrangement
Single row vertical, 2 rows linkage
Foundation form
Static pressure pile, cement precast pile, concrete foundation
Standard wind speed
＜47m/s，3seconds gust, (customizable)
Ground clearance
＞500mm，(customizable)
Grounding methodSelf-grounding
Electrical Aspect
Drive way
Rotary drive
Motor Power
150W
Flat time
＜8 minutes
Controller
MCU
Control tracking accuracy
＜2°
Protection level
IP65
Operating temperature-40-+70℃
Motor protection
Overheat protection, overcurrent protection, self-locking protection
Limit protection
Mechanical limit + motor hard limit + soft limit
Control mode
Independent GPS time control + tilt sensor hybrid control
Power consumption
< 0.1kWh/day
Power supply
String power supply/external power supply
Communication method
RS485 Modbus agreement
Signal transmission method
Wired/wireless optional
